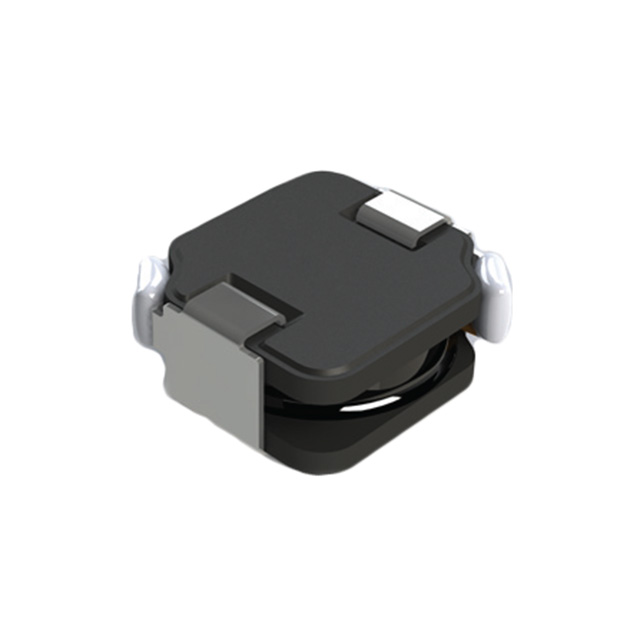

PA4333 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD IND, PWR, 7.1X6.5X3 .47 UH, SMT
| Part | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Type | Shielding | Material - Core | Frequency - Self Resonant | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Current Rating (Amps) | Mounting Type | Package / Case | Inductance Frequency - Test | Current - Saturation (Isat) | Inductance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 6.6 mOhm | 125 °C | -40 C | Drum Core Wirewound | Shielded | Iron | 71 MHz | 0.268 " | 0.291 in | 6.8 mm | 7.4 mm | 20 % | 11 A | Surface Mount | Nonstandard | 1 MHz | 16.5 A | 470 nH | 0.126 in | 3.2 mm |
