ADP513 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

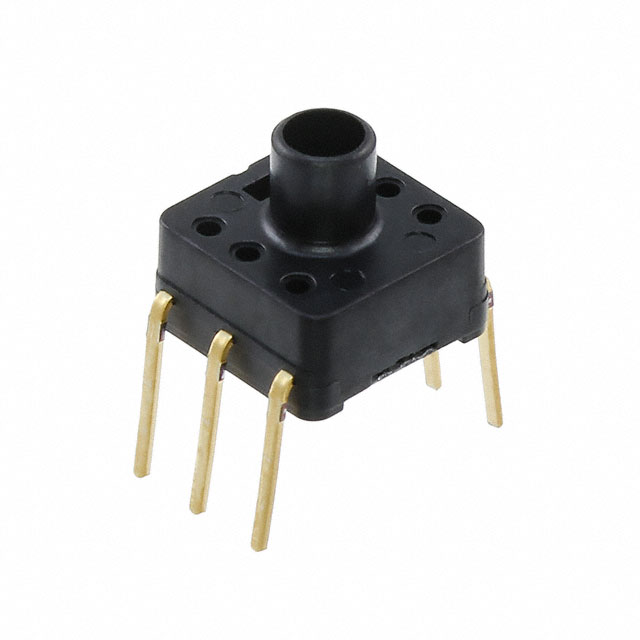

PRESSURE SENSOR 0.5V TO 4.5V 0KPA TO 50KPA GAGE 6-PIN DIP
| Part | Maximum Pressure [Max] | Maximum Pressure | Port Style | Operating Pressure | Operating Pressure | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Output Type | Output [Max] | Output [Min] | Accuracy | Package / Case | Mounting Type | Features | Port Size | Port Size | Port Size | Pressure Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 14.5 PSI | 100 kPa | Barbless | 7.25 PSI | 50 kPa | -10 °C | 60 °C | Board Mount | Analog Voltage | 4.5 V | 0 mV | 1.25 % | 6-DIP Module | Through Hole | Amplified Output Temperature Compensated | 3 mm | 0.12 in | Male Tube | Vented Gauge | PC Pin |
