HDSP-301 Series
Manufacturer: Broadcom Limited
Beta
⌘K

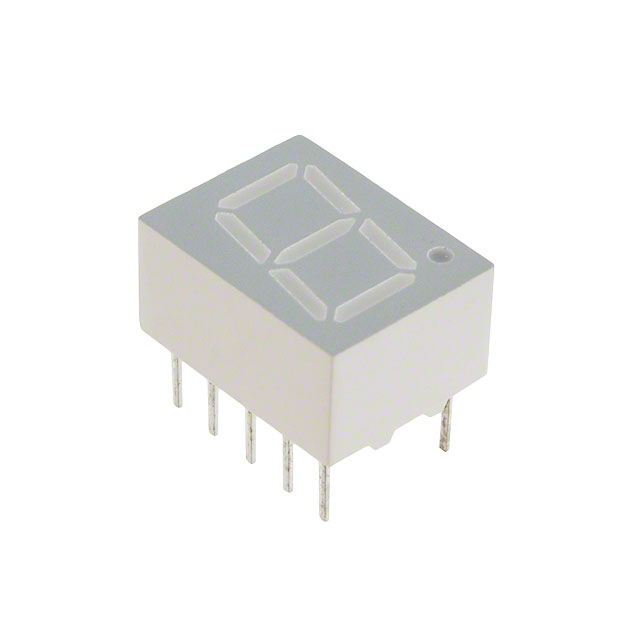

DISPLAY 7SEG 0.4" SGL GRN 10DIP
| Part | Common Pin | Wavelength - Peak | Display Type | Voltage - Forward (Vf) (Typ) | Power Dissipation (Max) [Max] | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Current - Test | Number of Characters | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Color | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Common Anode | 568 nm | 7-Segment | 2.25 V | 105 mW | 10-DIP (0.300" 7.62mm) | 10.16 mm | 0.4 in | 20 mA | 1 | 0.276 in | 0.504 in | 12.8 mm | 7 mm | 9.7 mm | 0.382 in | Green | 2.8 mcd |
