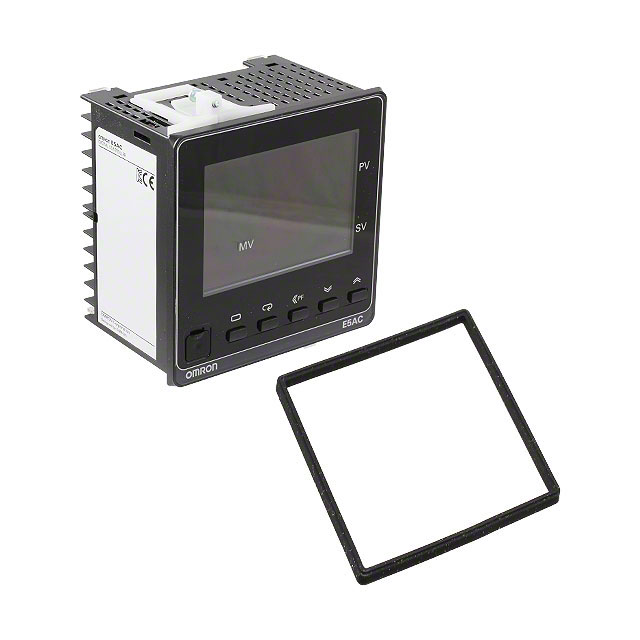

E5AC-QX Series

Manufacturer: Omron Automation and Safety

Catalog

CONTROL TEMP/PROC 24V PANEL MT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Number of Characters Per Row [custom]	Number of Characters Per Row [custom]	Number of Characters Per Row [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply	Output Type	Features	Control Method	Input Range [Min]	Input Range [Max]	Termination Style	Ingress Protection	Mounting Type	Display Type	Type	Display Characters - Height	Display Characters - Height	Communications	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Characters - Height	Number of Characters Per Row	Number of Characters Per Row
Omron Automation and Safety E5AC-QX4D5M-009	55 °C	-10 °C	0.551 lb	249.93 g	4	4	4	92 mm	92 mm	24 VAC	Relay (4) Voltage (External SSR)	Event Input Heater Fault Detection	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight Tri Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm	RS-485 (CompoWay/F Modbus)
Omron Automation and Safety E5AC-QX4A5M-010	55 °C	-10 °C	0.551 lb	249.93 g	4	4	4	92 mm	92 mm		Relay (4) Voltage (External SSR)	Event Input Heater Fault Detection	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight Tri Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm		240 VAC	100 VAC
Omron Automation and Safety E5AC-QX4A5M-011	55 °C	-10 °C	0.551 lb	249.93 g	4	4	4	92 mm	92 mm		Relay (4) Voltage (External SSR)	Event Input Heater Fault Detection	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight Tri Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm		240 VAC	100 VAC
Omron Automation and Safety E5AC-QX3DSM-810	55 °C	-10 °C	0.551 lb	249.93 g				92 mm	92 mm	24 VAC	Relay Voltage	Event Input Heater Fault Detection	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight LCD - Dual Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)		15 mm 25 mm				0.59 in 0.984 in	4	4
Omron Automation and Safety E5AC-QX4A5M-000	55 °C	-10 °C	0.551 lb	249.93 g	4	4	4	92 mm	92 mm		Relay (4) Voltage (External SSR)		On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight Tri Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm		240 VAC	100 VAC
Omron Automation and Safety E5AC-QX1DSM-800	55 °C	-10 °C	0.551 lb	249.93 g				92 mm	92 mm	24 VAC	Relay Voltage (External SSR)		On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight LCD - Dual Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)		15 mm 25 mm				0.59 in 0.984 in	4	4
Omron Automation and Safety E5AC-QX3ASM-800	55 °C	-10 °C	0.551 lb	249.93 g				92 mm	92 mm		Relay Voltage		On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight LCD - Dual Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)		15 mm 25 mm		240 VAC	100 VAC	0.59 in 0.984 in	4	4
Omron Automation and Safety E5AC-QX3DSM-808	55 °C	-10 °C	0.551 lb	249.93 g				92 mm	92 mm	24 VAC	Relay Voltage	Event Input Heater Fault Detection	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight LCD - Dual Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)		15 mm 25 mm	RS-485 (CompoWay/F Modbus)			0.59 in 0.984 in	4	4
Omron Automation and Safety E5AC-QX3ASM-810	55 °C	-10 °C	0.551 lb	249.93 g				92 mm	92 mm		Relay Voltage	Event Input Heater Fault Detection	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight LCD - Dual Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)		15 mm 25 mm		240 VAC	100 VAC	0.59 in 0.984 in	4	4
Omron Automation and Safety E5AC-QX4A5M-009	55 °C	-10 °C	0.551 lb	249.93 g	4	4	4	92 mm	92 mm		Relay (4) Voltage (External SSR)	Event Input Heater Fault Detection	On/Off Proportional (PID)	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	IP66 - Dust Tight Water Resistant	Panel Mount	Backlight Tri Color Characters	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm	RS-485 (CompoWay/F Modbus)	240 VAC	100 VAC
