1299/40C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

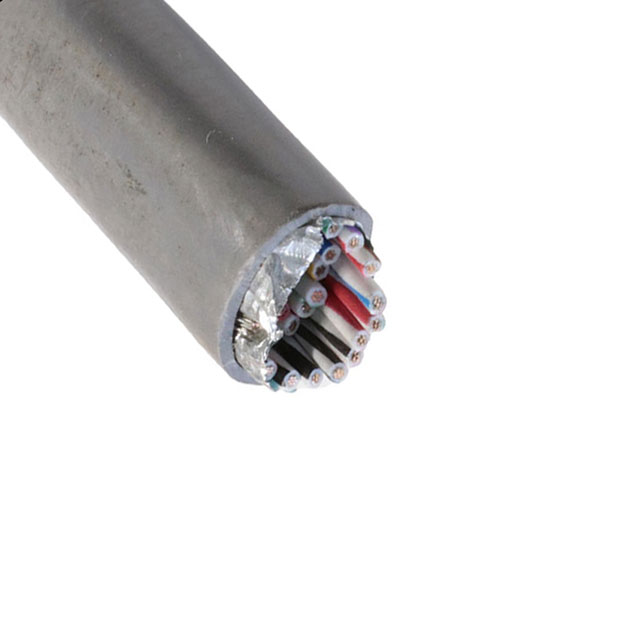

MULTICONDUCTOR CABLE, SHIELDED, 40 CONDUCTOR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M
| Part | Shield Material | Shield Coverage | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Number of Conductors | Length | Length | Conductor Material | Jacket Color | Shield Type | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Cable Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 300 VDC | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 40 | 304.8 m | 1000 ft | Copper Tinned | Slate | Foil | 11 mm | 0.433 " | Multi-Conductor | Drain Wire | 80 °C | -20 ░C | Communication Control | 22 AWG |
