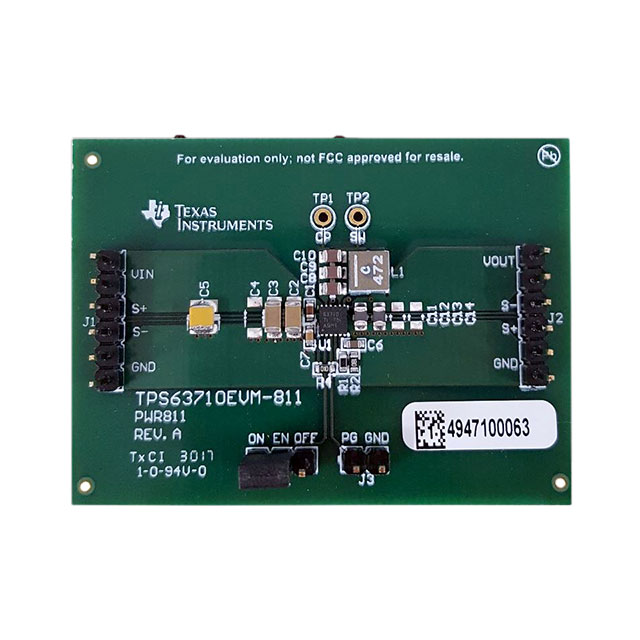

TPS63710 Series

Low Noise, 1A Synchronous Inverting Buck Converter in 3x3 WSON Package

Catalog

Low Noise, 1A Synchronous Inverting Buck Converter in 3x3 WSON Package

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Number of Outputs	Function	Voltage - Output (Min/Fixed)	Synchronous Rectifier	Voltage - Output (Max) [Max]	Topology	Package / Case	Output Configuration	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Frequency - Switching	Supplier Device Package	Current - Output
Texas Instruments TPS63710DRRT	Surface Mount	-40 °C	125 ¯C	Adjustable	1	Step-Down	-1 V		-5.5 V	Buck	12-WFDFN Exposed Pad	Negative	3.1 V	14 V	1.5 MHz	12-WSON (3x3)	1 A

Catalog

Low Noise, 1A Synchronous Inverting Buck Converter in 3x3 WSON Package

Key Features

• 3.1 V to 14 V Input Voltage Range1 A Output CurrentUp to 91% Efficiency±1.5% Output Voltage AccuracySynchronous RectificationLow 1/f-Noise Reference SystemNoise: 22 µVRMS(10 Hz to 100 kHz)Output Voltage: -1 V to -5.5 V|VOUT| < 0.7 x VIN1.5-MHz fixed frequency PWM modeThermal Shutdown5-µA Shutdown Current3-mm × 3-mm WSON PackageCreate a Custom Design Using the TPS63710 With theWEBENCH®Power Designer3.1 V to 14 V Input Voltage Range1 A Output CurrentUp to 91% Efficiency±1.5% Output Voltage AccuracySynchronous RectificationLow 1/f-Noise Reference SystemNoise: 22 µVRMS(10 Hz to 100 kHz)Output Voltage: -1 V to -5.5 V|VOUT| < 0.7 x VIN1.5-MHz fixed frequency PWM modeThermal Shutdown5-µA Shutdown Current3-mm × 3-mm WSON PackageCreate a Custom Design Using the TPS63710 With theWEBENCH®Power Designer

Description

The TPS63710 is an inverting step-down dc-dc converter generating a negative output voltage down to -5.5 V. It provides an output current up to 1 A, depending on the input-voltage to output-voltage ratio. Its filtered reference system gives low 1/f noise which is required in high performance telecommunication systems. The TPS63710 operates with a fixed-frequency PWM control topology. It has an internal current limit and a thermal shutdown. The input voltage range of 3.1 V to 14 V allows the TPS63710 to be used in a variety of applications where a negative output voltage is generated from a, in absolute value, higher positive input voltage. Synchronous rectification provides high efficiency especially for small output voltages like -1.8 V, which are typically used as a negative supply voltage for high performance DACs and ADCs. A fixed switching frequency of 1.5 MHz allows the use of small external components and enables a small total solution size. The TPS63710 comes in a 3-mm × 3-mm WSON package that provides good thermal performance in applications running at high ambient temperature. The TPS63710 is an inverting step-down dc-dc converter generating a negative output voltage down to -5.5 V. It provides an output current up to 1 A, depending on the input-voltage to output-voltage ratio. Its filtered reference system gives low 1/f noise which is required in high performance telecommunication systems. The TPS63710 operates with a fixed-frequency PWM control topology. It has an internal current limit and a thermal shutdown. The input voltage range of 3.1 V to 14 V allows the TPS63710 to be used in a variety of applications where a negative output voltage is generated from a, in absolute value, higher positive input voltage. Synchronous rectification provides high efficiency especially for small output voltages like -1.8 V, which are typically used as a negative supply voltage for high performance DACs and ADCs. A fixed switching frequency of 1.5 MHz allows the use of small external components and enables a small total solution size. The TPS63710 comes in a 3-mm × 3-mm WSON package that provides good thermal performance in applications running at high ambient temperature.
