2466267 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

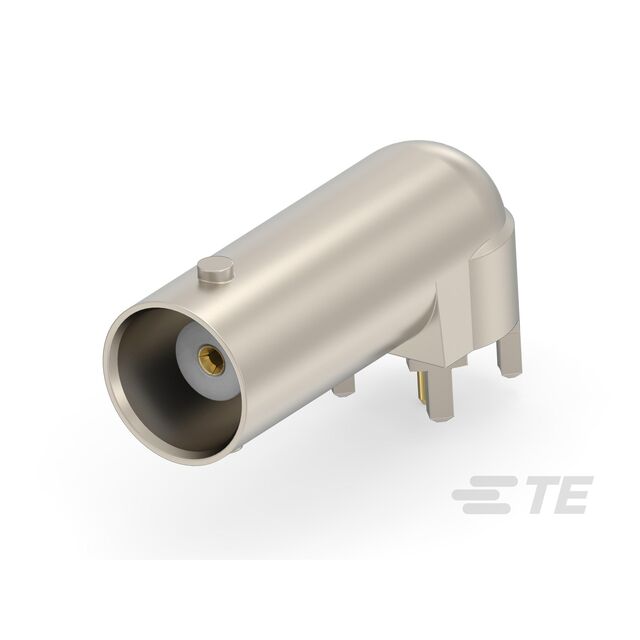

CONN BNC JACK R/A 50 OHM PCB
| Part | Frequency - Max [Max] | Connector Type | Shield Termination | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mounting Type | Mating Cycles | Fastening Type | Connector Style | Center Contact Material | Housing Color | Contact Termination | Body Finish | Impedance | Body Material | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 GHz | Female Socket Jack | Solder | 1 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Through Hole Right Angle | 500 | Bayonet Lock | BNC | Beryllium Copper | Silver | Solder | Tin | 50 Ohms | Zinc | Gold |
