FG0H Series

Manufacturer: KEMET

Catalog

CAP SUPER 0.47F 5.5V RADIAL ROHS COMPLIANT: YES

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Termination	Mounting Type	Tolerance [Max]	Tolerance [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

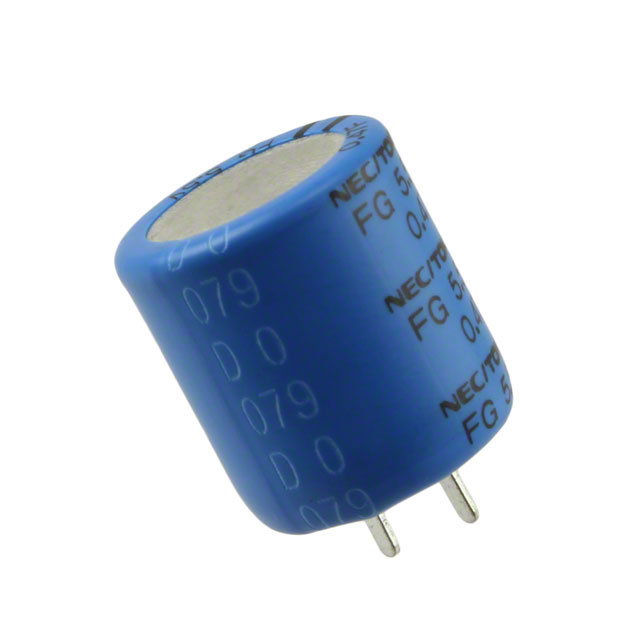

KEMET FG0H474ZF	0.571 in	14.5 mm	Can Radial	120 Ohm	-25 °C	70 °C	5.5 V	0.2 in	5.08 mm	0.709 in	18 mm	470 mF	PC Pins	Through Hole	80 %	-20 %

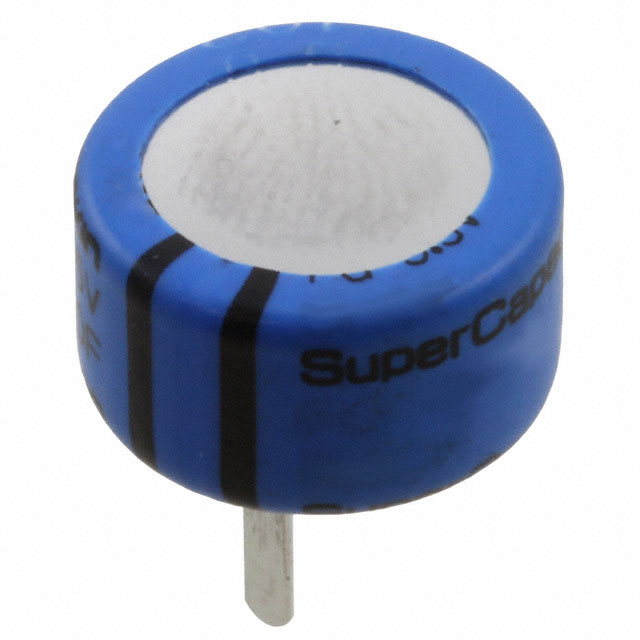

KEMET FG0H104ZF	0.433 "	11 mm	Can Radial	100 Ohm	-25 °C	70 °C	5.5 V	0.2 in	5.08 mm			0.1 F	PC Pins	Through Hole	80 %	-20 %	6.5 mm	0.256 in
