628-5W5 Series
Manufacturer: EDAC Inc.
Beta
⌘K

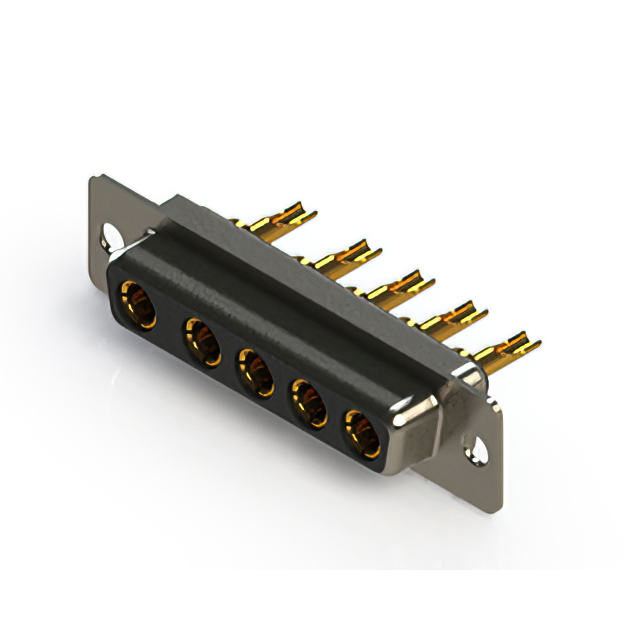

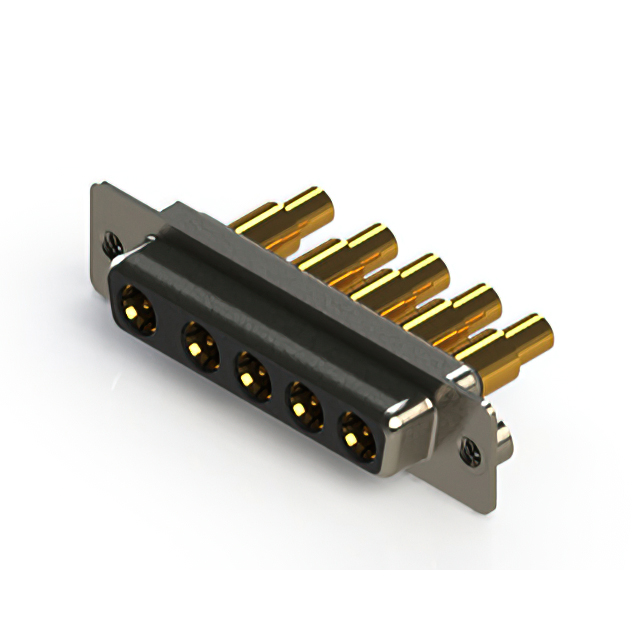

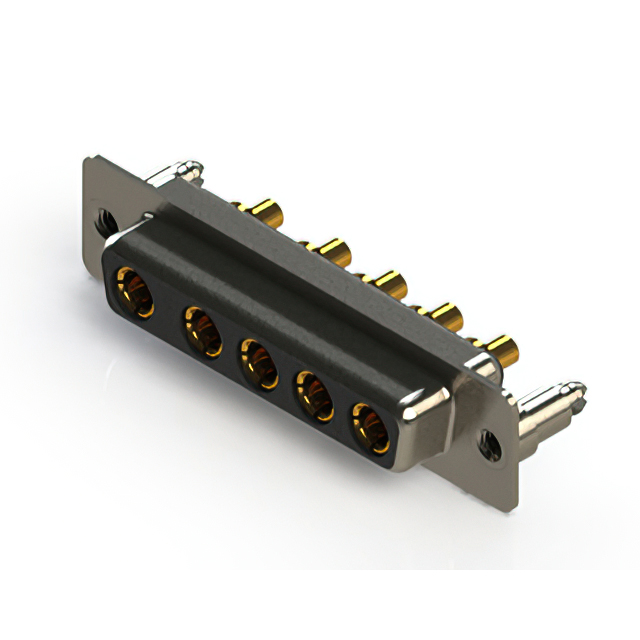

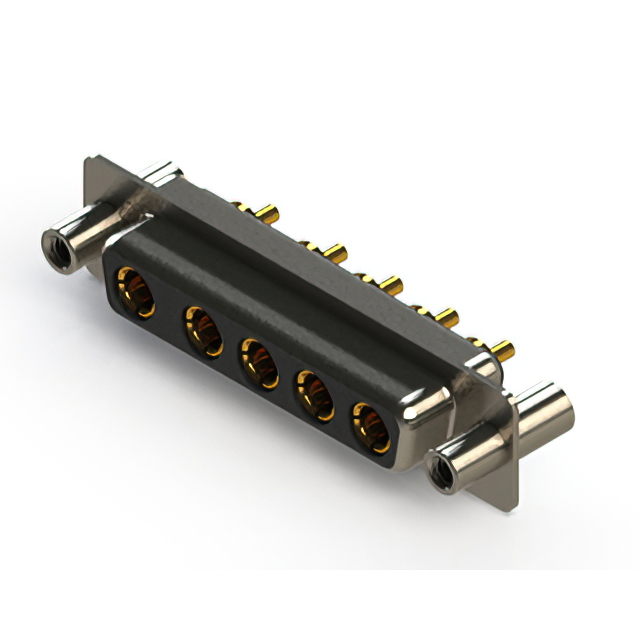

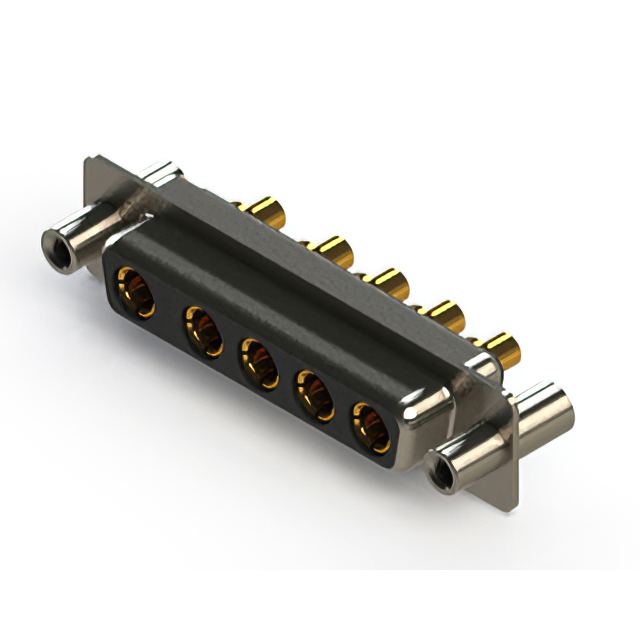

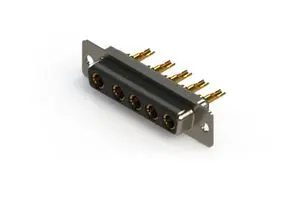

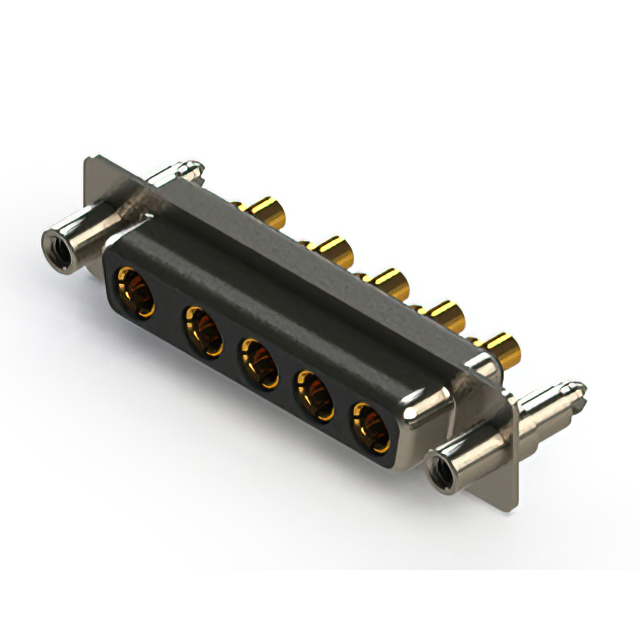

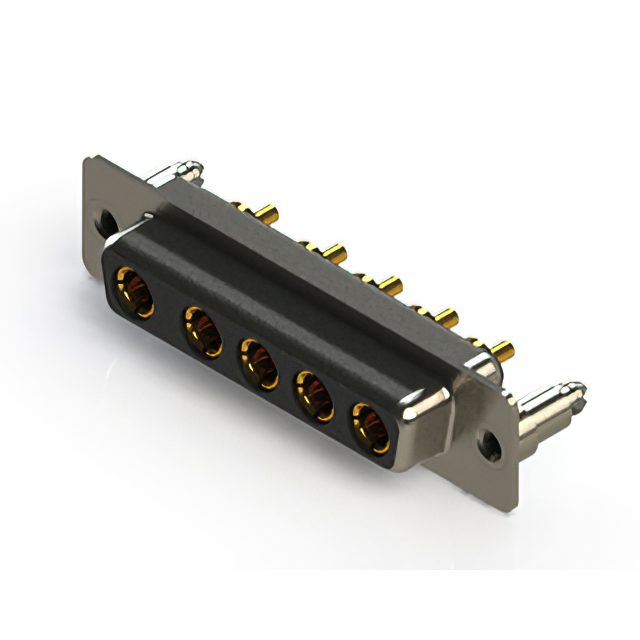

CONN D-SUB RCPT 5POS VERT SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Color | Contact Material | Dielectric Material | Contact Finish Thickness | Current Rating (Amps) | Mounting Type | Flange Feature | Connector Type | Termination | Features | Material Flammability Rating | Contact Finish | Connector Style | Number of Rows | Number of Positions | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Contact Type | Shell Material, Finish | Flange Feature [custom] | Flange Feature [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | Flash | 20 A | Through Hole | Board Side (4-40) | Receptacle Female Sockets | Solder | Board Lock Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Signal and Power | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | Flash | 10 A | Through Hole | Receptacle Female Sockets | Solder | Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Signal and Power | 4-40 | 4-40 | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | Flash | 30 A | Through Hole | 4-40 | Receptacle Female Sockets | Solder | Board Lock Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Signal and Power | |||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | 20 A | Through Hole | Board Side (4-40) | Receptacle Female Sockets | Solder | Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Signal and Power | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | Flash | 30 A | Through Hole | M3 | Receptacle Female Sockets | Solder | Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Signal and Power | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | Flash | 20 A | Through Hole | Board Side (M3) | Receptacle Female Sockets | Solder | Board Lock Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Signal and Power | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | Flash | Free Hanging (In-Line) | Board Side (4-40) | Receptacle Female Sockets | Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Coax Signal | |||||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | 10 A | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Signal and Power | Nickel Plated Steel | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | Flash | 20 A | Through Hole | 4-40 | Receptacle Female Sockets | Solder | Board Lock Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Signal and Power | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Black | Copper Alloy | Polyester Thermoplastic | Flash | 10 A | Through Hole | Board Side (M3) | Receptacle Female Sockets | Solder | Board Lock Shielded | UL94 V-0 | Gold | Combo D-Sub | 1 | 5 | 3 | DB B | 5W5 | Signal and Power |
