79F Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 1UH 270MA 800 MOHM TH
| Part | Frequency - Self Resonant | Current Rating (Amps) | Material - Core | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Q @ Freq | Mounting Type | Inductance | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [custom] | Size / Dimension [custom] | Package / Case | Shielding | Tolerance | Type | Q @ Freq [custom] | Q @ Freq [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

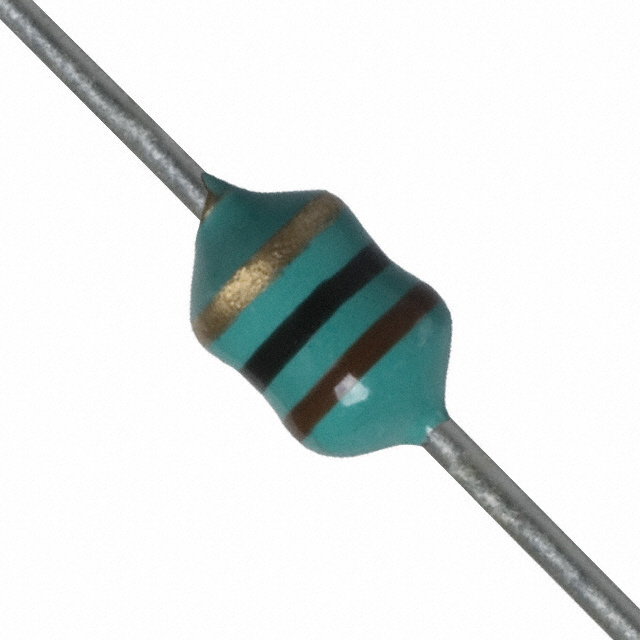

 Bourns Inc. | 150 MHz | 270 mA | Ferrite | 800 mOhm | 25 MHz | 25 MHz 35 | Through Hole | 1 µH | -55 C | 105 ░C | 2.54 mm | 0.1 in | 4.06 mm | 0.16 " | Axial | Unshielded | 10 % | Drum Core Wirewound | ||

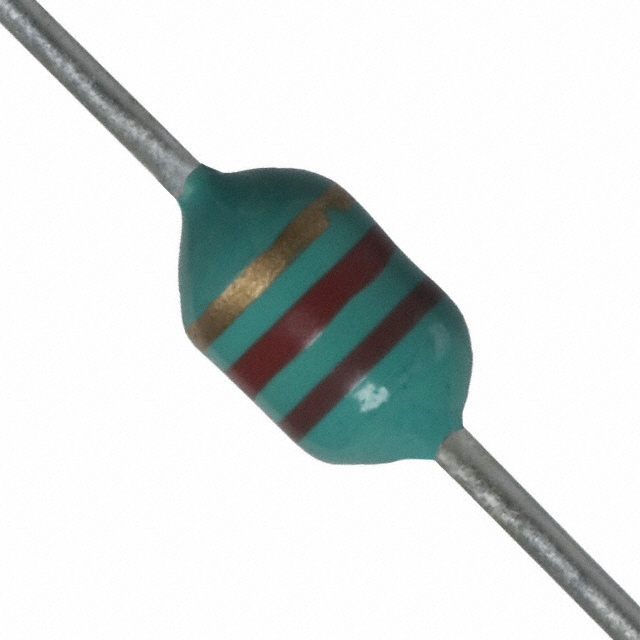

 Bourns Inc. | 45 MHz | 0.23 A | Ferrite | 1.2 Ohm | 7.9 MHz | Through Hole | 2.2 µH | -55 C | 105 ░C | 2.54 mm | 0.1 in | 4.06 mm | 0.16 " | Axial | Unshielded | 10 % | Drum Core Wirewound | 40 | 7.9 MHz |
