071I Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 6.88"L X 4.88"W

Part	Weight	Weight	Material	Container Type	Area (L x W)	Area (L x W)	Material Flammability Rating	Features	Design	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Thickness	Thickness	Height [z]	Height [z]

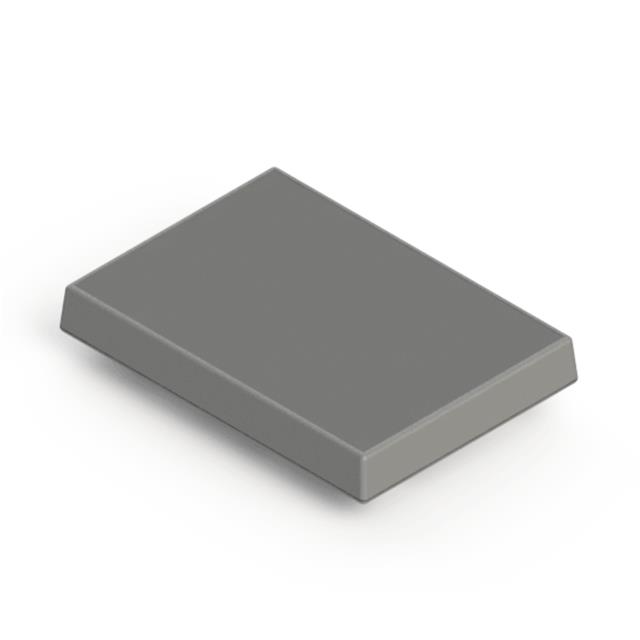

Serpac 071I,GY	139.71 g	0.308 lb	ABS Plastic	Box	217 cm²	33.6 in²	UL94 HB	PCB Supports	Cover Included Hand Held	IP40 NEMA 1	6.88 in	123.95 mm	174.75 mm	4.88 in	Gray	2.54 mm	0.1 in	22.86 mm	0.9 in

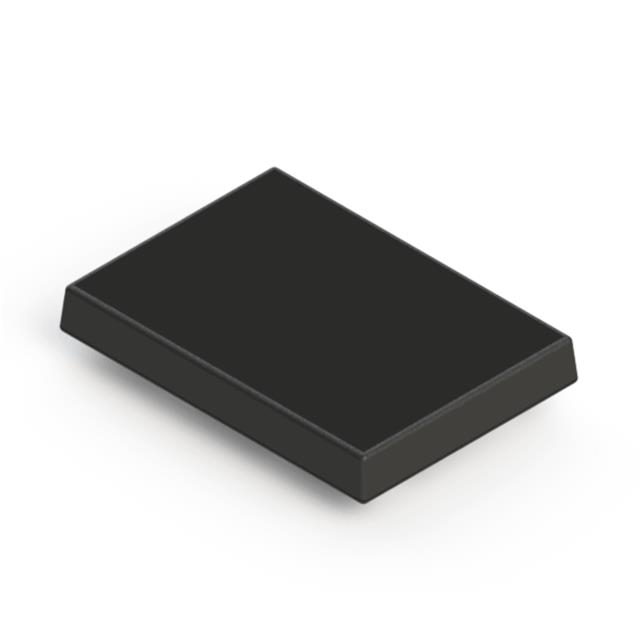

Serpac 071I,BK	139.71 g	0.308 lb	ABS Plastic	Box	217 cm²	33.6 in²	UL94 HB	PCB Supports	Cover Included Hand Held	IP40 NEMA 1	6.88 in	123.95 mm	174.75 mm	4.88 in	Black	2.54 mm	0.1 in	22.86 mm	0.9 in

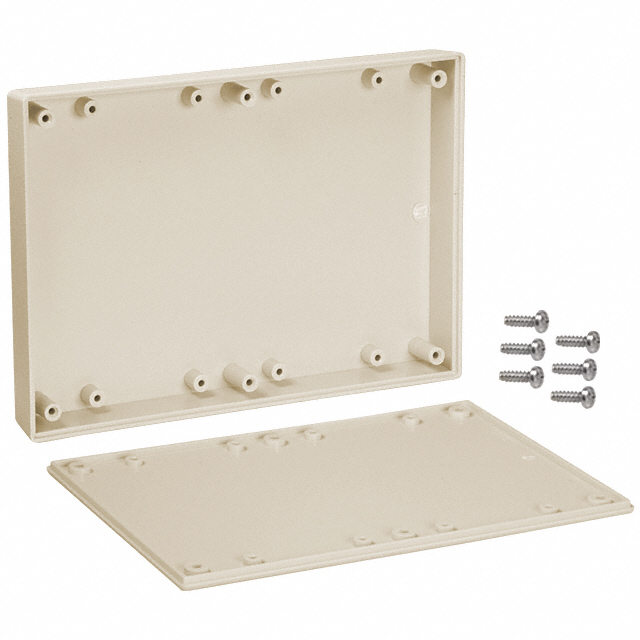

Serpac 071I,AL	139.71 g	0.308 lb	ABS Plastic	Box	217 cm²	33.6 in²	UL94 HB	PCB Supports	Cover Included Hand Held	IP40 NEMA 1	6.88 in	123.95 mm	174.75 mm	4.88 in	Almond	2.54 mm	0.1 in	22.86 mm	0.9 in
