HS Series

Supercapacitors / Ultracapacitors .12F 3.8V ESR=200

Manufacturer: Eaton - Electronics Division

Catalog

Supercapacitors / Ultracapacitors .12F 3.8V ESR=200

Catalog

Supercapacitors / Ultracapacitors .12F 3.8V ESR=200

Part	Capacitance	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Voltage - Rated	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Lifetime @ Temp.	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

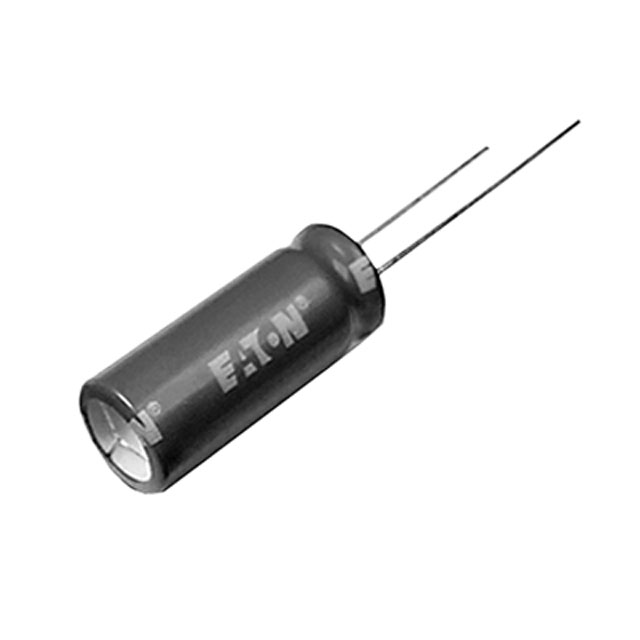

Eaton - Electronics Division HS1025-3R8706-R	70 F	0.197 "	5 mm	250 mOhm	10.5 mm	0.413 in	Through Hole	3.8 VDC	20 %	70 °C	-15 °C	PC Pins	1000 Hrs	Can Radial	1.063 in	27 mm

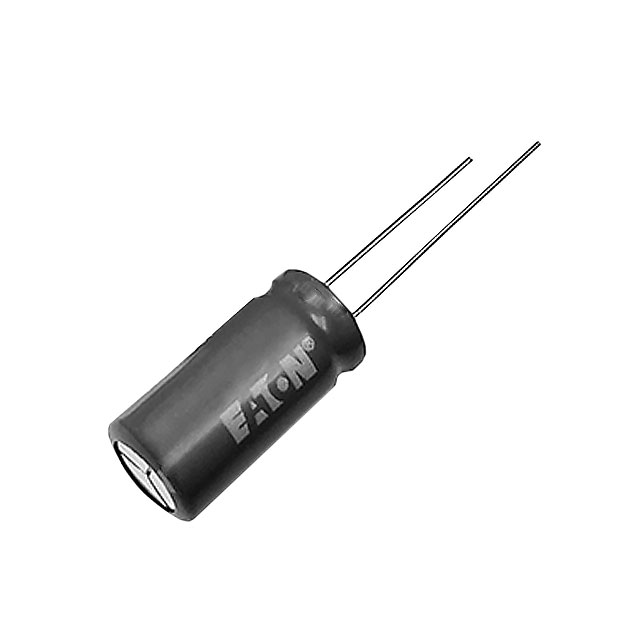

Eaton - Electronics Division HS1020-3R8506-R	50 F	0.197 "	5 mm	450 mOhm	10.5 mm	0.413 in	Through Hole	3.8 VDC	20 %	70 °C	-15 °C	PC Pins	1000 Hrs	Can Radial			0.866 in	22 mm

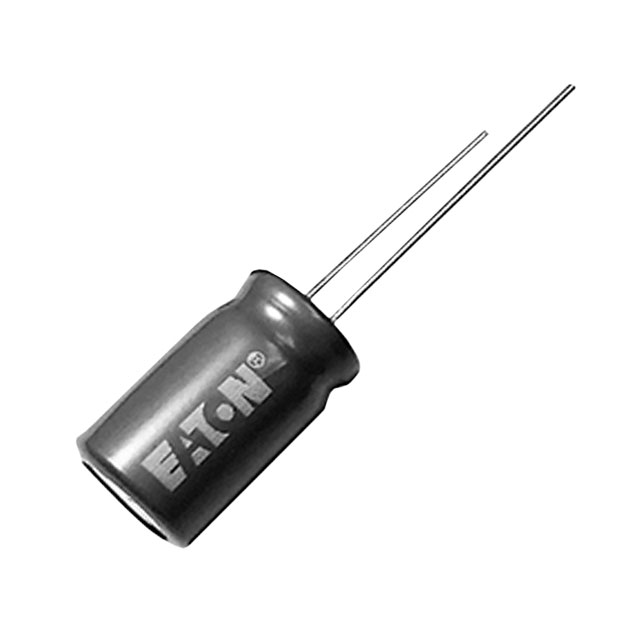

Eaton - Electronics Division HS1016-3R8306-R	30 F	0.197 "	5 mm	550 mOhms	10.5 mm	0.413 in	Through Hole	3.8 VDC	20 %	70 °C	-15 °C	PC Pins	1000 Hrs	Can Radial					0.709 in	18 mm
Eaton - Electronics Division HS1225-3R8127-R	120 F	0.197 "	5 mm	200 mOhm	12.9 mm	0.508 "	Through Hole	3.8 VDC	20 %	70 °C	-15 °C	PC Pins	1000 Hrs	Can Radial	1.063 in	27 mm
Eaton - Electronics Division HS1625-3R8227-R	220 F	0.295 in	7.5 mm	100 mOhms			Through Hole	3.8 VDC	20 %	70 °C	-15 °C	PC Pins	1000 Hrs	Can Radial	1.063 in	27 mm
