InnoSwitch3-CP Series

Catalog

AC/DC CONVERTERS 75 W (85-265 VAC)

Part	Power (Watts)	Package / Case	Package / Case	Package / Case [y]	Topology	Output Isolation	Control Features	Fault Protection	Mounting Type	Frequency - Switching	Voltage - Breakdown	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Input [Max]	Voltage - Input [Min]	Contents	Power - Output	Current - Output	Main Purpose	Utilized IC / Part	Voltage - Output	Outputs and Type	Regulator Topology
POWER INTEGRATIONS INN3279C-H217-TL	85 W	0.425 in 17 Leads	24-PowerSMD Module	10.8 mm	Flyback Secondary Side SR	Isolated	EN Soft Start	Current Limiting Over Load Over Temperature Over Voltage Short Circuit	Surface Mount	65 kHz	750 V	-40 °C	105 °C	InSOP-24D

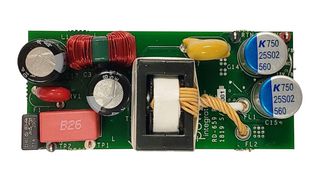

POWER INTEGRATIONS RDK-659															265 VAC	180 VAC	Board(s)	30 W	6 A	AC/DC Primary and Secondary Side	INN3268C	5.1 V	1 Isolated Output	Flyback
POWER INTEGRATIONS INN3268C-H214-TL	65 W	0.425 in 17 Leads	24-PowerSMD Module	10.8 mm	Flyback Secondary Side SR	Isolated	EN Soft Start	Current Limiting Over Load Over Temperature Over Voltage Short Circuit	Surface Mount		650 V	-40 °C	105 °C	InSOP-24D
POWER INTEGRATIONS INN3268C-H233-TL	65 W	0.425 in 17 Leads	24-PowerSMD Module	10.8 mm	Flyback Secondary Side SR	Isolated	EN Soft Start	Current Limiting Over Load Over Temperature Over Voltage Short Circuit	Surface Mount		650 V	-40 °C	105 °C	InSOP-24D
POWER INTEGRATIONS INN3265C-H201-TL	22 W	0.425 in 17 Leads	24-PowerSMD Module	10.8 mm	Flyback Secondary Side SR	Isolated		Current Limiting Over Temperature Over Voltage	Surface Mount	100 kHz	650 V	-40 °C	150 °C	InSOP-24D
POWER INTEGRATIONS INN3268C-H215-TL	65 W	0.425 in 17 Leads	24-PowerSMD Module	10.8 mm	Flyback Secondary Side SR	Isolated	EN Soft Start	Current Limiting Over Load Over Temperature Over Voltage Short Circuit	Surface Mount		650 V	-40 °C	105 °C	InSOP-24D
