XBP24BZ7 Series

Catalog

RF TXRX MOD 802.15.4 TRC ANT TH

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	Data Rate	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving [Min]	Current - Receiving [Max]	Sensitivity	Protocol	Antenna Type	Utilized IC / Part	Mounting Type	RF Family/Standard	Frequency	Current - Transmitting [Min]	Current - Transmitting [Max]	Package / Case	Memory Size
Digi International XBP24BZ7PIT-001J	3.6 V	2.7 V	10 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	Integrated Trace	EM357	Through Hole	802.15.4	2.4 GHz	117 mA	132 mA	Module

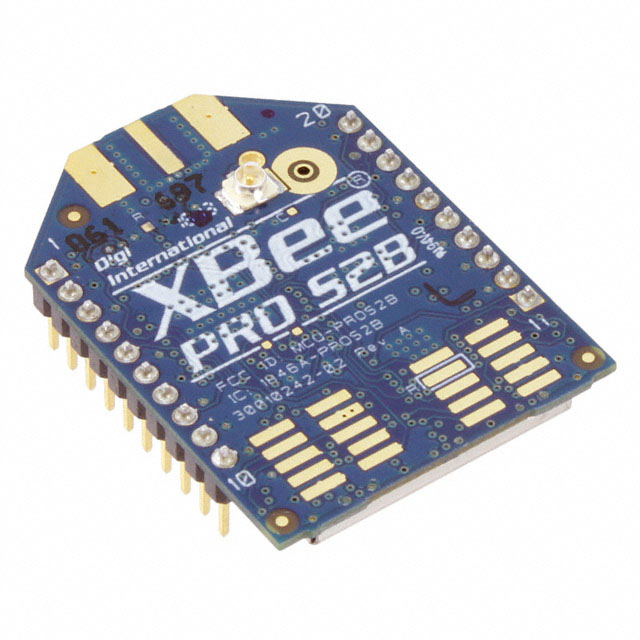

Digi International XBP24BZ7UIT-001	3.6 V	2.7 V	18 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	Antenna Not Included U.FL	EM357	Through Hole	802.15.4	2.4 GHz	205 mA	220 mA	Module
Digi International XBP24BZ7PIT-002J	3.6 V	2.7 V	10 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	Integrated Trace	EM357	Through Hole	802.15.4	2.4 GHz	117 mA	132 mA	Module

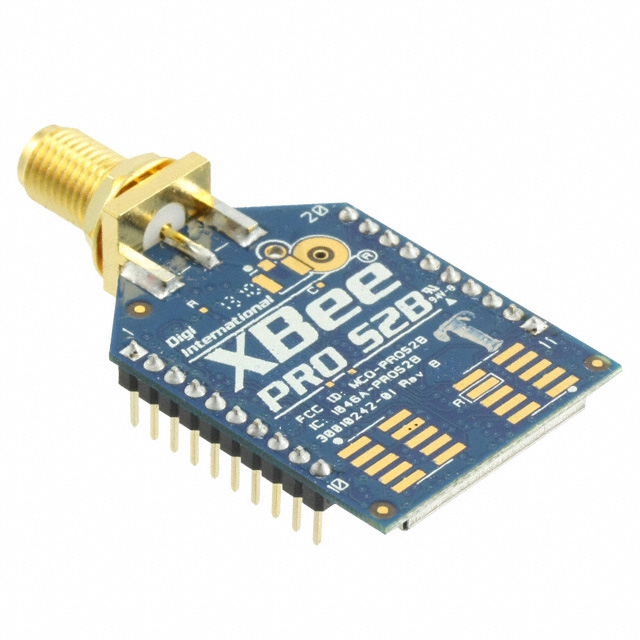

Digi International XBP24BZ7SIT-004	3.6 V	2.7 V	18 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	RP-SMA	EM357	Through Hole	802.15.4	2.4 GHz	205 mA	220 mA	Module
Digi International XBP24BZ7SITB003J	3.6 V	2.7 V	10 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	RP-SMA	EM357	Through Hole	802.15.4	2.4 GHz	117 mA	132 mA	Module	2 kB 32 kB

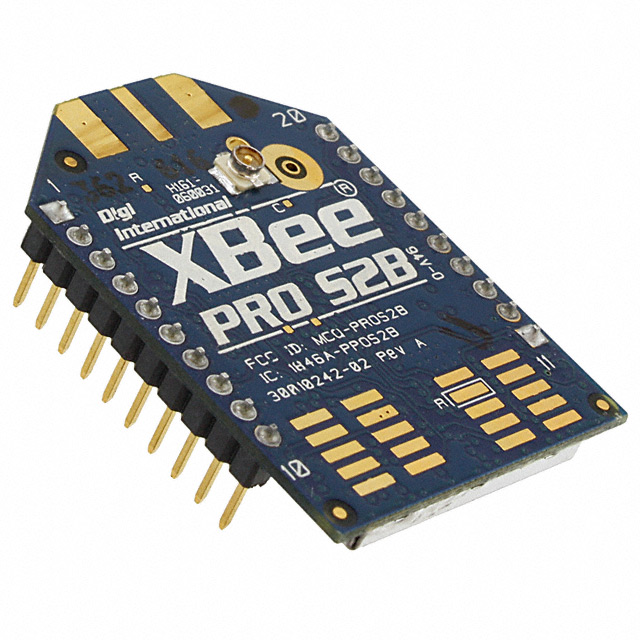

Digi International XBP24BZ7UITA003	3.6 V	2.7 V	18 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	Antenna Not Included U.FL	EM357	Through Hole	802.15.4	2.4 GHz	205 mA	220 mA	Module	2 kB 32 kB

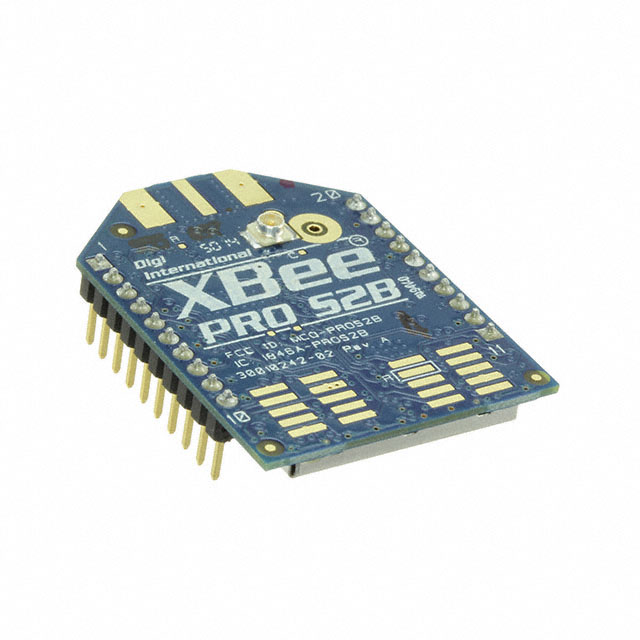

Digi International XBP24BZ7UIT-004J	3.6 V	2.7 V	10 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	Antenna Not Included U.FL	EM357	Through Hole	802.15.4	2.4 GHz	117 mA	132 mA	Module

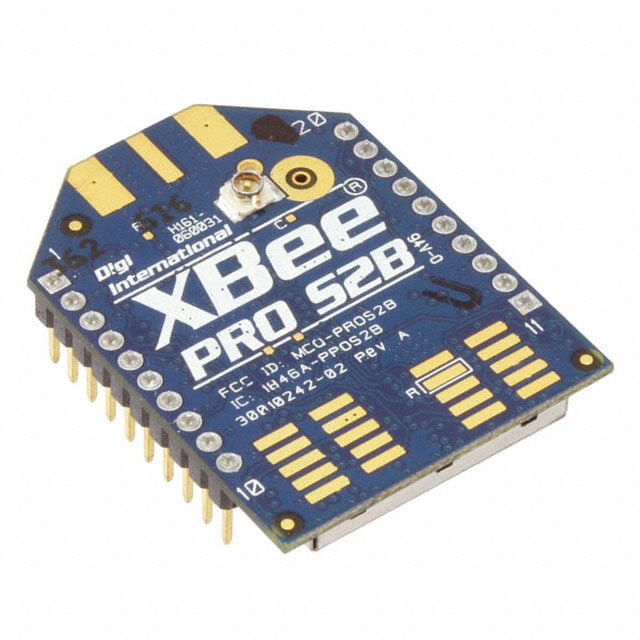

Digi International XBP24BZ7UITA001	3.6 V	2.7 V	18 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	Antenna Not Included U.FL	EM357	Through Hole	802.15.4	2.4 GHz	205 mA	220 mA	Module	2 kB 32 kB

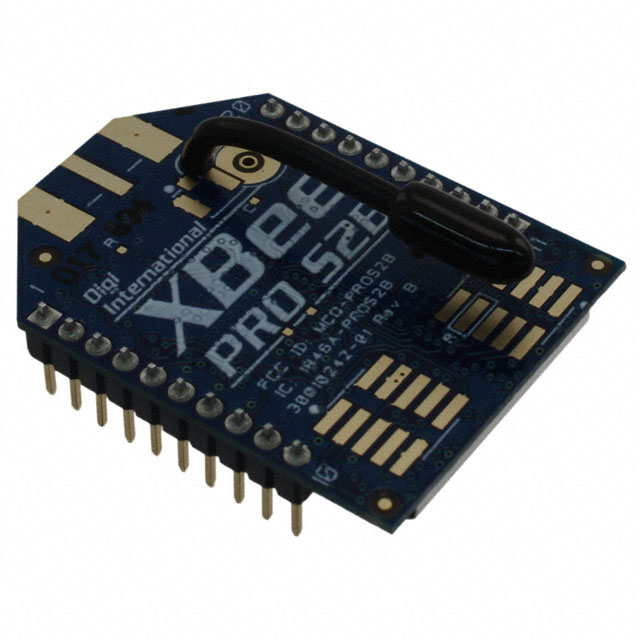

Digi International XBP24BZ7WITB003	3.6 V	2.7 V	18 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	Integrated Wire Antenna	EM357	Through Hole	802.15.4	2.4 GHz	205 mA	220 mA	Module	2 kB 32 kB

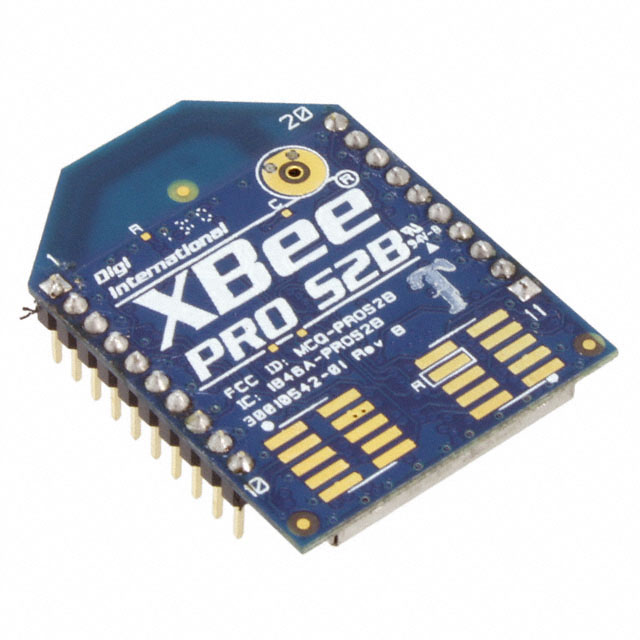

Digi International XBP24BZ7PIT-001	3.6 V	2.7 V	18 dBm	250 KBd	SPI UART	85 °C	-40 C	47 mA	62 mA	-102 dBm	Zigbee®	Integrated Trace	EM357	Through Hole	802.15.4	2.4 GHz	205 mA	220 mA	Module
