UTG12 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSG MALE 28POS INLINE

Part	Shielding	Type	Contact Type	Contact Size	Connector Type	Note	Insert Material	Fastening Type	Orientation	Housing Color	Material Flammability Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Shell Material	Number of Positions	For Use With/Related Products	Shell Size - Insert	Shell Size - Insert	Thread Size (Nominal)	Thread Size (Class)	Thread Pitch (TPI)	Material	Diameter - Outside	Plating	Cable Exit Angle	Color	Cable Opening (Max)	Cable Opening (Min)	Thread Size	Ingress Protection IP Rating	Ingress Protection Description	Includes	Includes Total Count	Features

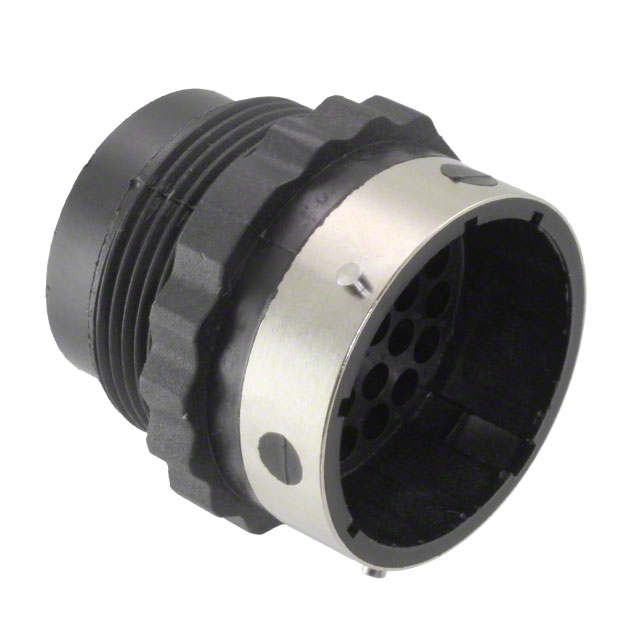

Amphenol Aerospace Operations UTG12028P	Unshielded	For Male Pins	Crimp	16 S	Receptacle Housing	Contacts Not Included	Glass Filled Thermoplastic	Bayonet Lock	N (Normal)	Black Silver	UL94 V-0	28	20	Free Hanging (In-Line)	125 °C	-55 °C	Circular	Glass Filled Polyester	28
Amphenol Aerospace Operations UTG12AD		Backshell Heat Shrink Adapter																		Trim Trio® UTG and UTP Connectors	12	12	0.6875 in	UNEF	24 TPI	Metal	0.945 in	Anodized	180 °	Black

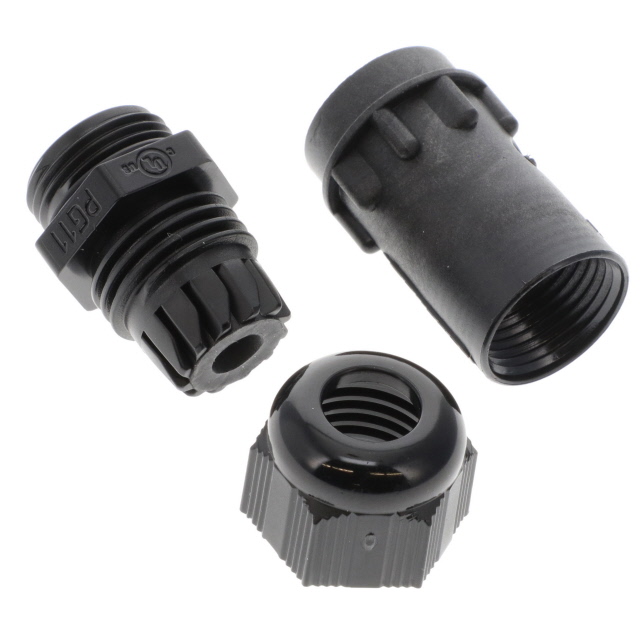

Amphenol Aerospace Operations UTG12ST		Backshell Cable Clamp																		Trim Trio® UTG and UTP Connectors	12	12				Thermoplastic	0.945 in		180 °	Black	0.276 in	0.118 in	PG11	IP65	Dust Tight Water Resistant
Amphenol Aerospace Operations UTG12LPGN	Shielded	Backshell Cable Clamp																		Trim Trio® UTG and UTP Connectors	12	12				Brass			90 °	Silver	0.629 in	0.276 in	PG11			Backshell Cable Clamp Gromet Screws Washers	8 pcs	Clamp Screws
Amphenol Aerospace Operations UTG12028S	Unshielded	For Female Sockets	Crimp	16 S	Receptacle Housing	Contacts Not Included	Glass Filled Thermoplastic	Bayonet Lock	N (Normal)	Black Silver	UL94 V-0	28	20	Free Hanging (In-Line)	125 °C	-55 °C	Circular	Glass Filled Polyester	28
Amphenol Aerospace Operations UTG12448P
Amphenol Aerospace Operations UTG12448S	Unshielded	For Female Sockets	Crimp	16 S	Receptacle Housing	Contacts Not Included	Glass Filled Thermoplastic	Bayonet Lock	N (Normal)	Black Silver	UL94 V-0	48	24	Free Hanging (In-Line)	125 °C	-55 °C	Circular	Glass Filled Polyester	48

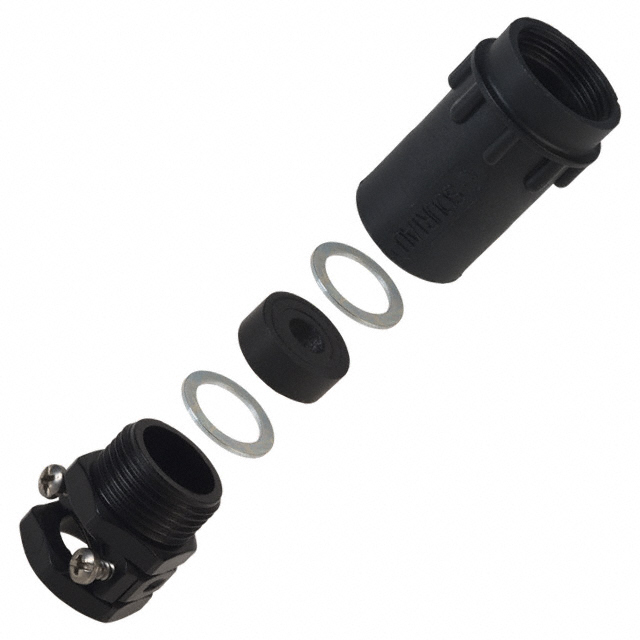

Amphenol Aerospace Operations UTG12PG		Backshell Cable Clamp																		Trim Trio® UTG and UTP Connectors	12	12				Thermoplastic	0.945 in		180 °	Black	0.629 in	0.276 in	PG11	IP65	Dust Tight Water Resistant	Backshell Cable Clamp Cable Gland Screws Washers	7 pcs	Cable Gland Clamp Screws Washers

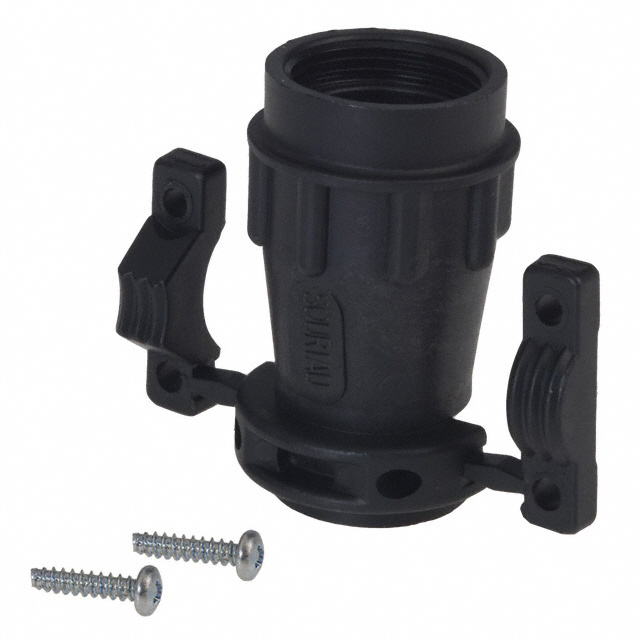

Amphenol Aerospace Operations UTG12AC		Backshell Cable Clamp																		Trim Trio® UTG and UTP Connectors	12	12	0.6875 in	UNEF	24 TPI	Thermoplastic	0.945 in		180 °	Black	0.504 in	0.118 in				Backshell Cable Clamp Screws	5 pcs	Clamp Screws

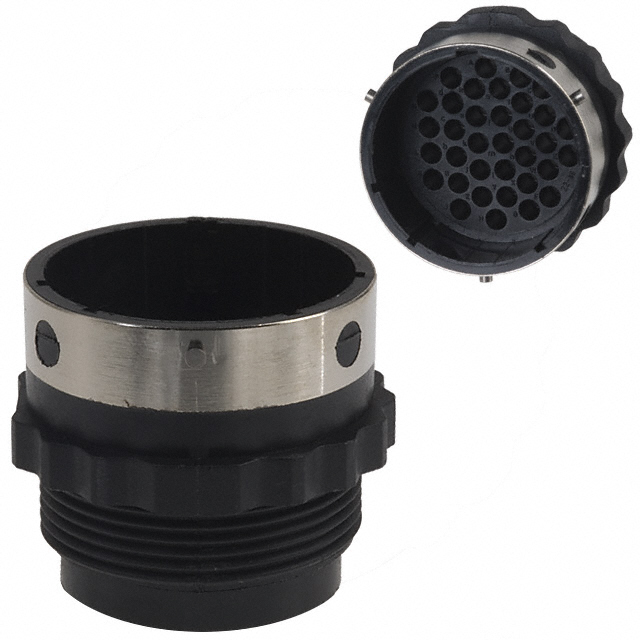

Amphenol Aerospace Operations UTG12235P	Unshielded	For Male Pins	Crimp	16 S	Receptacle Housing	Contacts Not Included	Glass Filled Thermoplastic	Bayonet Lock	N (Normal)	Black Silver	UL94 V-0	35	22	Free Hanging (In-Line)	125 °C	-55 °C	Circular	Glass Filled Polyester	35
