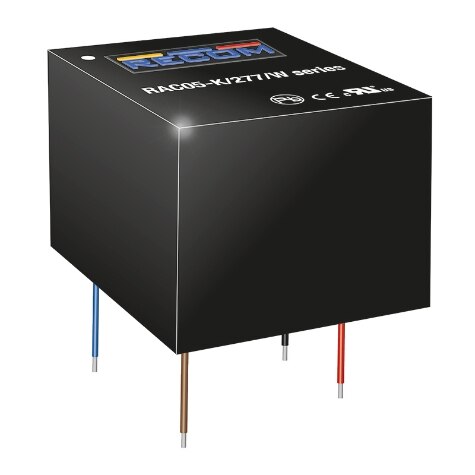

RAC05-K/277/W Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 5 W, 15 V, 330 MA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1 [custom]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Number of Outputs	Mounting Type	Voltage - Output 1	Power (Watts)	Approval Agency	Efficiency	Voltage - Isolation	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Type	Current - Output 1
Recom Power RAC05-15SK/277/W	-40 °C	85 °C	330 mA	0.86 in	21.8 mm	31.7 mm	1.05 in	1.25 in	26.7 mm	Universal Input	1	Chassis Mount	15 V	5 W	CB CE cURus	83 %	3000 V	Household Appliances ITE (Commercial)	305 VAC 430 VDC	85 VAC 120 VDC	Enclosed
Recom Power RAC05-24SK/277/W	-40 °C	85 °C		0.86 in	21.8 mm	31.7 mm	1.05 in	1.25 in	26.7 mm	Universal Input	1	Chassis Mount	24 V	5 W	CB CE cURus	84 %	3000 V	Household Appliances ITE (Commercial)	305 VAC 430 VDC	85 VAC 120 VDC	Enclosed	210 mA
Recom Power RAC05-12SK/277/W	-40 °C	85 °C		0.86 in	21.8 mm	31.7 mm	1.05 in	1.25 in	26.7 mm	Universal Input	1	Chassis Mount	12 V	5 W	CB CE cURus	83 %	3000 V	Household Appliances ITE (Commercial)	305 VAC 430 VDC	85 VAC 120 VDC	Enclosed	416 mA
Recom Power RAC05-05SK/277/W	-40 °C	85 °C		0.86 in	21.8 mm	31.7 mm	1.05 in	1.25 in	26.7 mm	Universal Input	1	Chassis Mount	5 V	5 W	CB CE cURus	80 %	3000 V	Household Appliances ITE (Commercial)	305 VAC 430 VDC	85 VAC 120 VDC	Enclosed	1 A
Recom Power RAC05-3.3SK/277/W	-40 °C	85 °C		0.86 in	21.8 mm	31.7 mm	1.05 in	1.25 in	26.7 mm	Universal Input	1	Chassis Mount	3.3 V	5 W	CB CE cURus	77 %	3000 V	Household Appliances ITE (Commercial)	305 VAC 430 VDC	85 VAC 120 VDC	Enclosed	1.51 A
