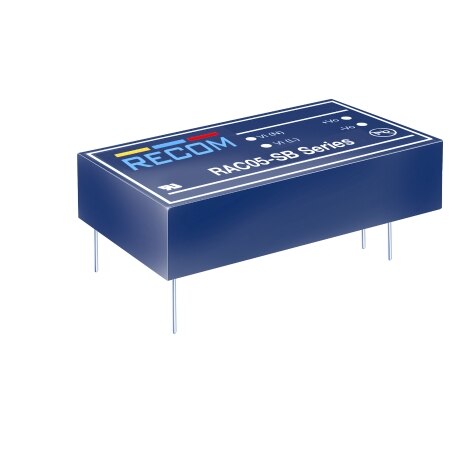

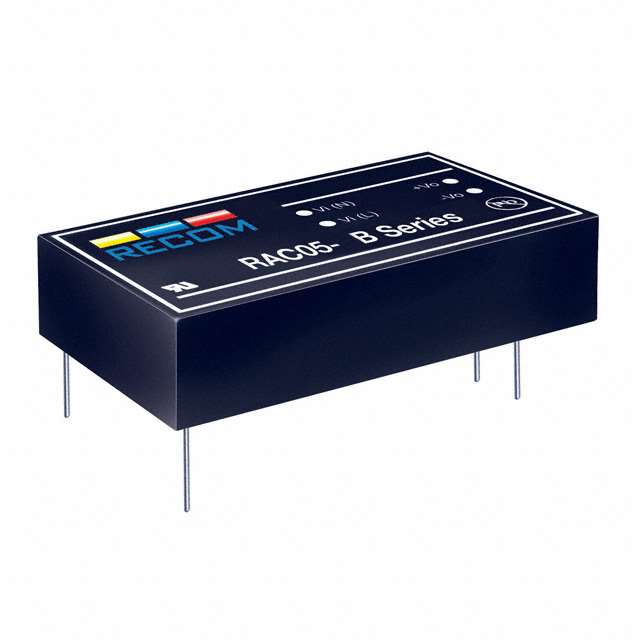

RAC05-SB Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC POWER MODULES 5W AC/DC 3KV REG 90-264VIN 12VOUT
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Features | Type | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Output 1 | Mounting Type | Approval Agency | Package / Case | Power (Watts) | Current - Output (Max) [Max] | Weight | Weight | Line Regulation | Load Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 50.8 mm | 2 in | 15.7 mm | 25.4 mm | 0.62 in | 1 " | 1 | ITE (Commercial) | 264 VAC | 90 VAC | SCP | Enclosed | 70 °C | -25 °C | 73 % | 12 V | Through Hole | CE cULus | 4-DIP Module | 5 W | 420 mA | ||||
 Recom Power | 50.8 mm | 2 in | 15.7 mm | 25.4 mm | 0.62 in | 1 " | 1 | ITE (Commercial) | 264 VAC | 90 VAC | SCP | Enclosed | 70 °C | -25 °C | 72 % | 5 V | Through Hole | CE cULus | 4-DIP Module | 5 W | 1 A | 0.067 lb | 30.39 g | 0.3 % | 0.5 % |
 Recom Power | 50.8 mm | 2 in | 15.7 mm | 25.4 mm | 0.62 in | 1 " | 1 | ITE (Commercial) | 264 VAC | 90 VAC | SCP | Enclosed | 70 °C | -25 °C | 76 % | 24 V | Through Hole | CE cULus | 4-DIP Module | 5 W | 230 mA |
