6600-63 Series

Catalog

TOGGLE HALF BOOT BLACK

Part	Color	Size / Dimension [z]	Size / Dimension [z]	Mounting Feature	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Ingress Protection	Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Type	For Use With/Related Products

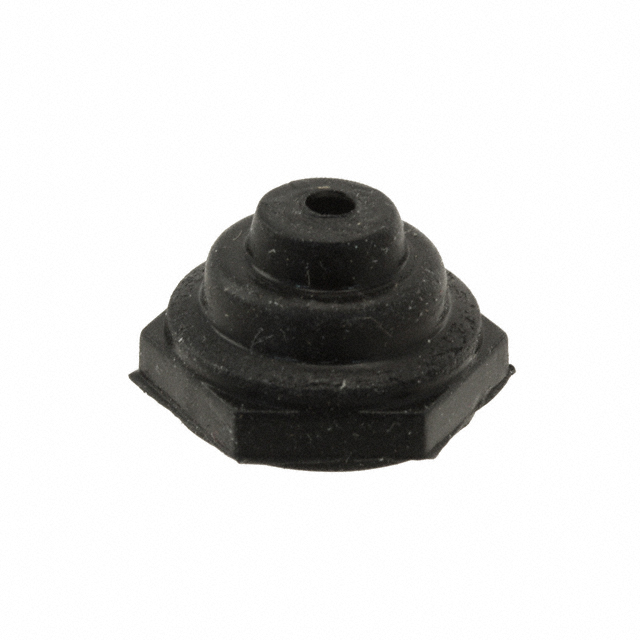

Electroswitch 6600-63-01	Black	0.412 in	10.46 mm	Front of Panel	0.1 in	2.54 mm	Environment Sealed	Silicone Rubber	204 °C	-70 °C	15/32-32 NS-2B	Half Boot Toggle	6600 Series

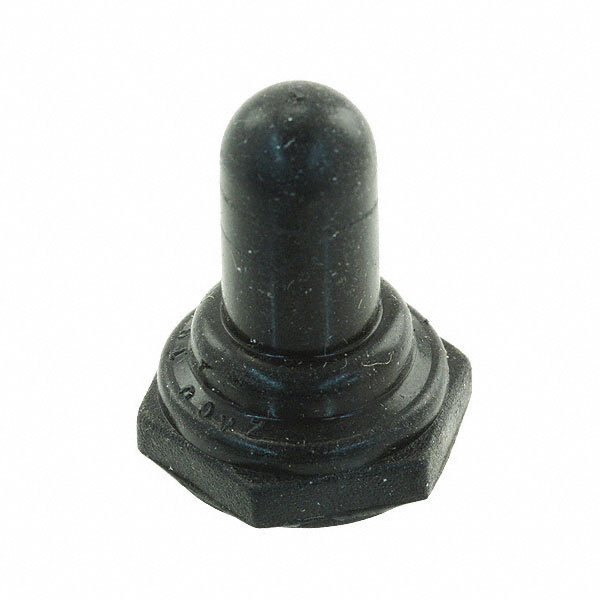

Electroswitch 6600-63-03	Black	0.885 in	22.48 mm	Front of Panel	0.209 in	5.31 mm	Environment Sealed	Silicone Rubber	204 °C	-70 °C	15/32-32 NS-2B	Full Boot Toggle	6600 Series

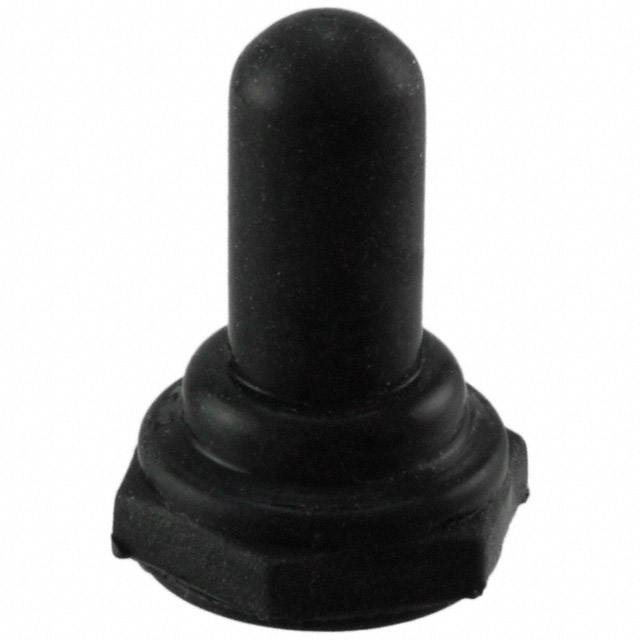

Electroswitch 6600-63-05	Black	0.945 "	24 mm	Front of Panel	0.209 in	5.31 mm	Environment Sealed	Silicone Rubber	204 °C	-70 °C	15/32-32 NS-2B	Full Boot Toggle	6600 Series

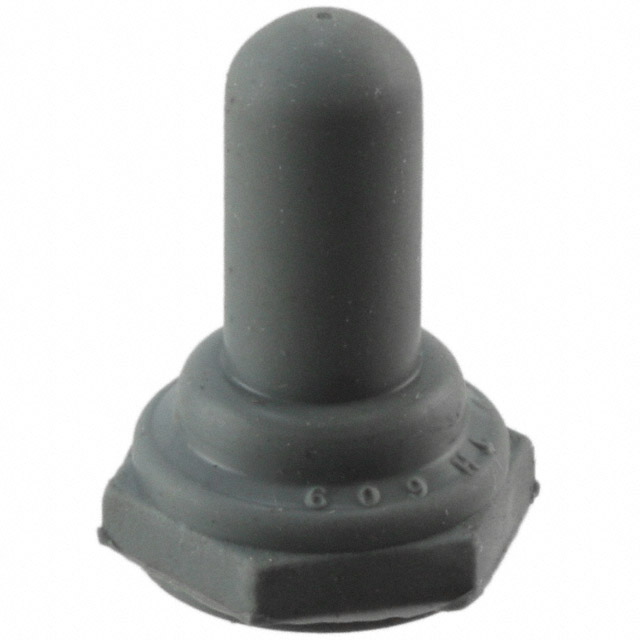

Electroswitch 6600-63-04	Gray	0.885 in	22.48 mm	Front of Panel	0.209 in	5.31 mm	Environment Sealed	Silicone Rubber	204 °C	-70 °C	15/32-32 NS-2B	Full Boot Toggle	6600 Series

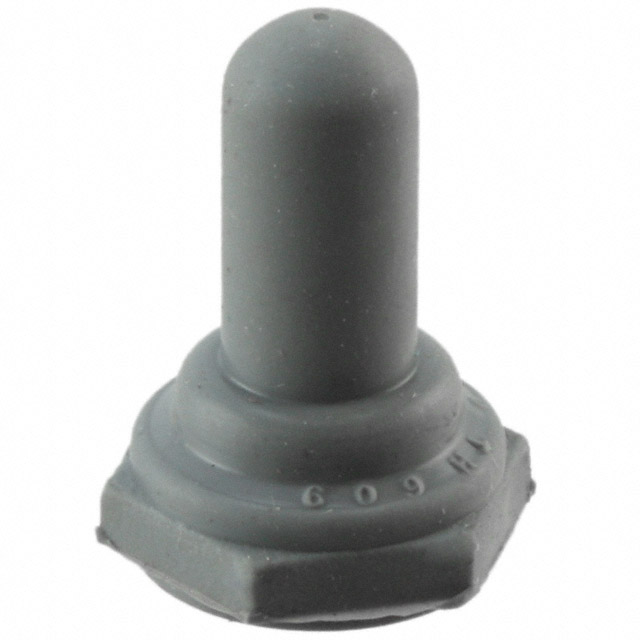

Electroswitch 6600-63-06	Gray	0.945 "	24 mm	Front of Panel	0.209 in	5.31 mm	Environment Sealed	Silicone Rubber	204 °C	-70 °C	15/32-32 NS-2B	Full Boot Toggle	6600 Series

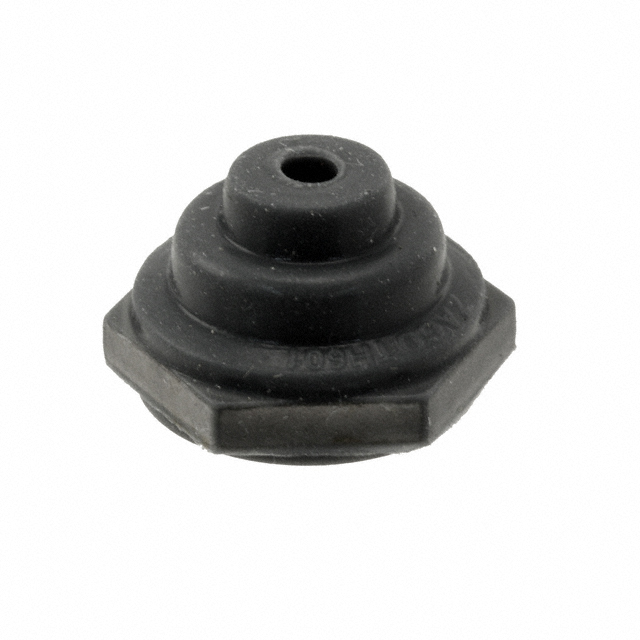

Electroswitch 6600-63-02	Gray	0.412 in	10.46 mm	Front of Panel	0.1 in	2.54 mm	Environment Sealed	Silicone Rubber	204 °C	-70 °C	15/32-32 NS-2B	Half Boot Toggle	6600 Series
