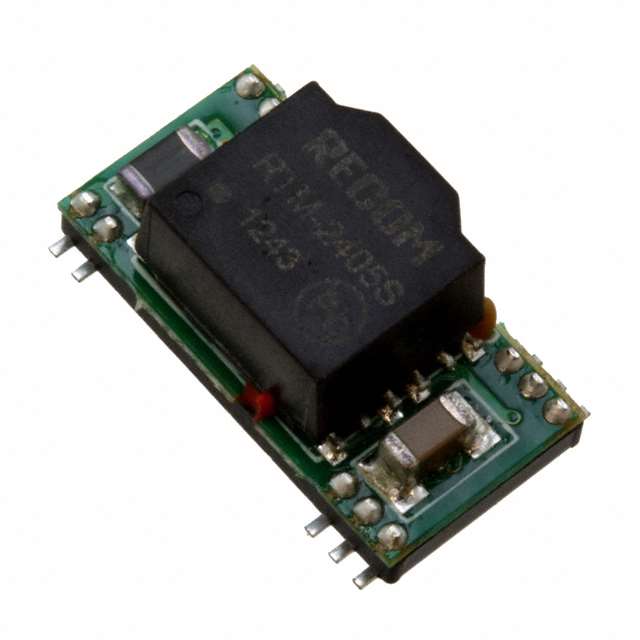

RTM Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 2W 24VIN 05VOUT 2KVDC ISO

Part	Current - Output (Max) [Max]	Power (Watts)	Features	Voltage - Isolation	Voltage - Input (Max) [Max]	Applications	Efficiency	Voltage - Input (Min) [Min]	Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1

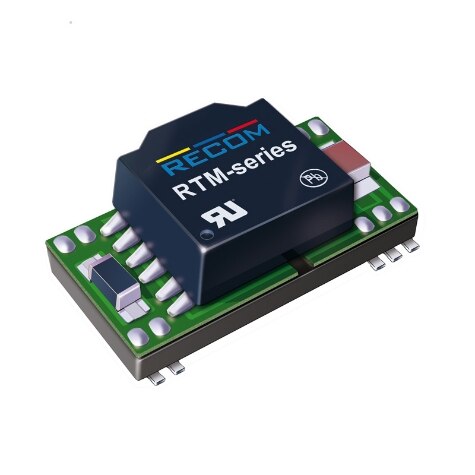

Recom Power RTM-2405S	400 mA	2 W	SCP	2000 V	26.4 V	ITE (Commercial) Medical	83 %	21.6 V	Isolated Module	1	90 °C	-40 C	5 V
Recom Power RTM-1205S/H-R	400 mA	2 W	SCP	3000 V	13.2 V	ITE (Commercial) Medical	81 %	10.8 V	Isolated Module	1	90 °C	-40 C	5 V
Recom Power RTM-0505S-R	400 mA	2 W	SCP	2000 V	5.5 V	ITE (Commercial) Medical	79 %	4.5 V	Isolated Module	1	90 °C	-40 C	5 V
Recom Power RTM-1205S-R	400 mA	2 W	SCP	2000 V	13.2 V	ITE (Commercial) Medical	81 %	10.8 V	Isolated Module	1	90 °C	-40 C	5 V
Recom Power RTM-1205S	400 mA	2 W	SCP	2000 V	13.2 V	ITE (Commercial) Medical	81 %	10.8 V	Isolated Module	1	90 °C	-40 C	5 V
Recom Power RTM-0505S	400 mA	2 W	SCP	2000 V	5.5 V	ITE (Commercial) Medical	79 %	4.5 V	Isolated Module	1	90 °C	-40 C	5 V
Recom Power RTM-0505S/H-R	400 mA	2 W	SCP	3000 V	5.5 V	ITE (Commercial) Medical	79 %	4.5 V	Isolated Module	1	90 °C	-40 C	5 V
Recom Power RTM-2405S-R	400 mA	2 W	SCP	2000 V	26.4 V	ITE (Commercial) Medical	83 %	21.6 V	Isolated Module	1	90 °C	-40 C	5 V
Recom Power RTM-0505S/H	400 mA	2 W	SCP	3000 V	5.5 V	ITE (Commercial) Medical	79 %	4.5 V	Isolated Module	1	90 °C	-40 C	5 V
Recom Power RTM-1205S/H	400 mA	2 W	SCP	3000 V	13.2 V	ITE (Commercial) Medical	81 %	10.8 V	Isolated Module	1	90 °C	-40 C	5 V
