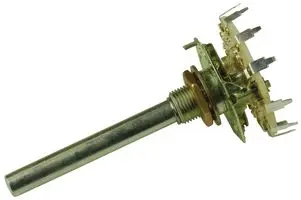

D5G0205 Series
Manufacturer: Electroswitch
Beta
⌘K
ROTARY SWITCH, 5 POSITION, 2 POLE, 30 °, 500 MA, 115 V, D5 SERIES
| Part | Panel Cutout Dimensions [diameter] | Contact Timing | Voltage Rating - DC | Voltage Rating - AC | Contact Material | Circuit per Deck | Current Rating (Amps) | Actuator Length [x] | Index Stops | Actuator Type | Actuator Type [diameter] | Termination Style | Depth Behind Panel [z] | Contact Finish | Number of Positions | Angle of Throw | Number of Poles per Deck | Mounting Type | Number of Decks [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | Non-Shorting (BBM) | 28 V | 115 V | Brass | DP5T | 1.5 A 500 mA | 47.63 mm | Fixed | Round | 0.25 in | PC Pin | 14.25 mm | Silver | 5 | 30 ° | 2 | Panel Mount Through Hole | 1 |
