AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS 10G BASE-T LAN TRANSFORMER. SINGLE PORT AND 24PIN WITH POE++ (600MA) AND SMT.

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Transformer Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Turns Ratio - Primary:Secondary

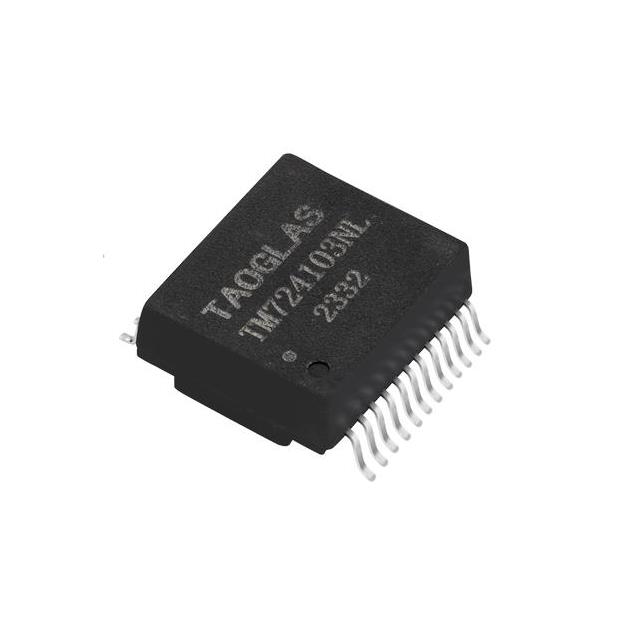

Taoglas Limited TM724103NL
Taoglas Limited TM82467NL	0.28 in	0.594 "	7.1 mm	15.1 mm	350 µH	LAN 1G Base-T Power over Ethernet (PoE)	70 °C	0 °C	Surface Mount	1CT	1CT	0.323 in	8.2 mm
Taoglas Limited TM5004NL	0.48 in	0.715 in	12.2 mm	18.16 mm	350 µH	LAN 1000 Base-T	85 °C	-40 C	Surface Mount					1CT:1CT Receiver 1CT:1CT Transmitter
