Wall Mount AC Adapters 5W 5V 1A USB A - Drop Comp
Wall Mount AC Adapters 5W 5V 1A USB A - Drop Comp
| Part | Output Connector | Power (Watts) | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Input Connector | Approval Agency | No Load Power Consumption | Efficiency | Form | Weight | Weight | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Input Type | Region Utilized | Voltage - Output | Current - Output (Max) [Max] | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

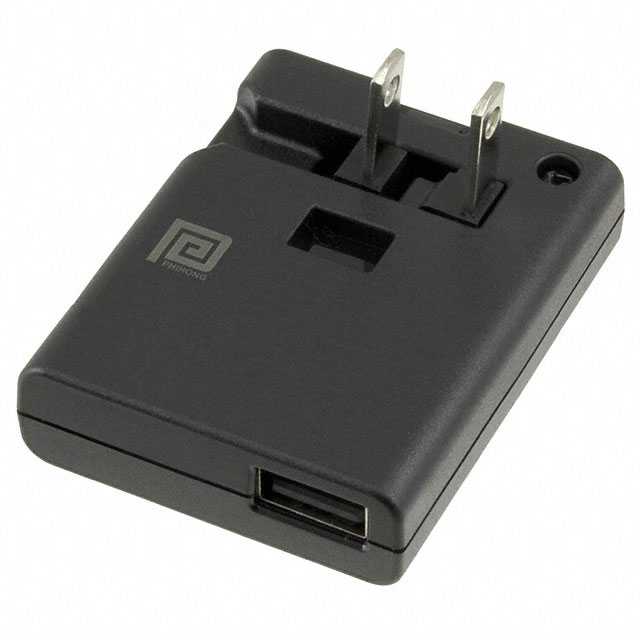

 Phihong USA | USB A Receptacle | 5 W | ITE (Commercial) | 45 °C | 0 °C | NEMA 1-15P Multi-Blade | C-Tick CE cULus | 75 mW | CoC Tier 1 Level VI | Wall Mount | 0.18 lb | 81.65 g | 47 mm | 2.36 " | 0.59 in | 60 mm | 1.85 in | 15 mm | Fixed Blade Multi-Blade | North America | 5 V | 1 A | ||
 Phihong USA | USB A Receptacle | 5 W | ITE (Commercial) | 45 °C | 0 °C | NEMA 1-15P Multi-Blade | C-Tick CE cULus | 75 mW | CoC Tier 1 Level VI | Wall Mount | 47 mm | 2.36 " | 0.59 in | 60 mm | 1.85 in | 15 mm | Fixed Blade Multi-Blade | North America | 5 V | 1 A | ||||
Phihong USA | USB A Receptacle | 5 W | ITE (Commercial) | 45 °C | 0 °C | NEMA 1-15P Multi-Blade | C-Tick CE cULus | 75 mW | CoC Tier 1 Level VI | Wall Mount | 47 mm | 2.36 " | 0.59 in | 60 mm | 1.85 in | 15 mm | Fixed Blade Multi-Blade | North America | 5 V | 1 A | 0.085 lb | 38.56 g |
