ST32EG Series

Manufacturer: Nidec Components Corporation

Catalog

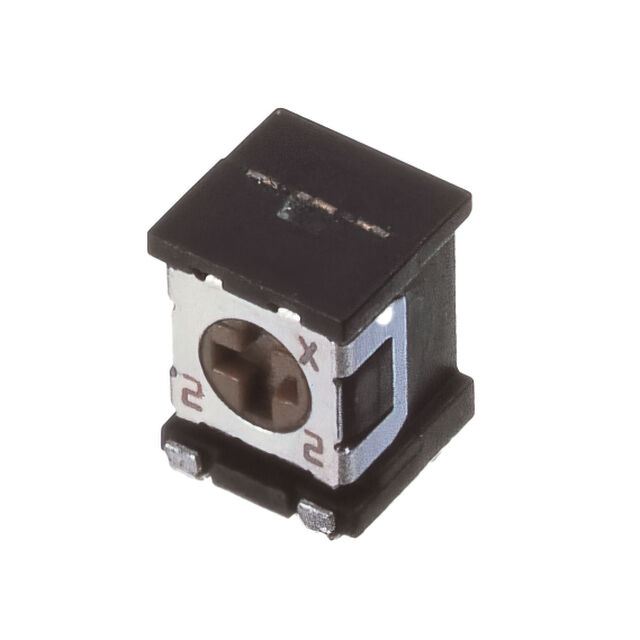

TRIMMER 2MOHM 0.125W J LEAD SIDE

Part	Power (Watts)	Power (Watts)	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination Style	Adjustment Type	Mounting Type	Tolerance	Resistance	Number of Turns	Resistive Material
Nidec Components Corporation ST32EG205	0.125 W	0.125 W	100 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %	2 MOhms	1	Cermet
Nidec Components Corporation ST-32EG103	0.125 W	0.125 W	100 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %	10000 Ohms	1	Cermet
Nidec Components Corporation ST-32EG202	0.125 W	0.125 W	100 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %	2 kOhms	1	Cermet
Nidec Components Corporation ST-32EG104	0.125 W	0.125 W	100 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %	100 kOhms	1	Cermet
Nidec Components Corporation ST-32EG500	0.125 W	0.125 W	250 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %	50 Ohms	1	Cermet
Nidec Components Corporation ST-32EG102	0.125 W	0.125 W	100 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %	1000 Ohms	1	Cermet
Nidec Components Corporation ST-32EG204	0.125 W	0.125 W	100 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %	200000 Ohms	1	Cermet
Nidec Components Corporation ST-32EG100	0.125 W	0.125 W	250 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %	10 Ohms	1	Cermet
Nidec Components Corporation ST-32EG501	0.125 W	0.125 W	100 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %	0.5 kOhms	1	Cermet
Nidec Components Corporation ST-32EG504	0.125 W	0.125 W	100 ppm/°C	3.5 mm	0.138 in	3.6 mm	0.142 in	J Lead	Side Adjustment	Surface Mount	20 %		1	Cermet
