5046 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS BOARD TO BOARD 20POS

Part	Mated Stacking Heights	Number of Rows [custom]	Pitch	Pitch	Contact Finish	Connector Type	Features	Number of Positions	Mounting Type	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
KYOCERA AVX 145046020140868+	4 mm	2	0.02 "	0.5 mm	Gold	Plug Outer Shroud Contacts	Solder Retention	20	Surface Mount	3.3 mm	0.13 in

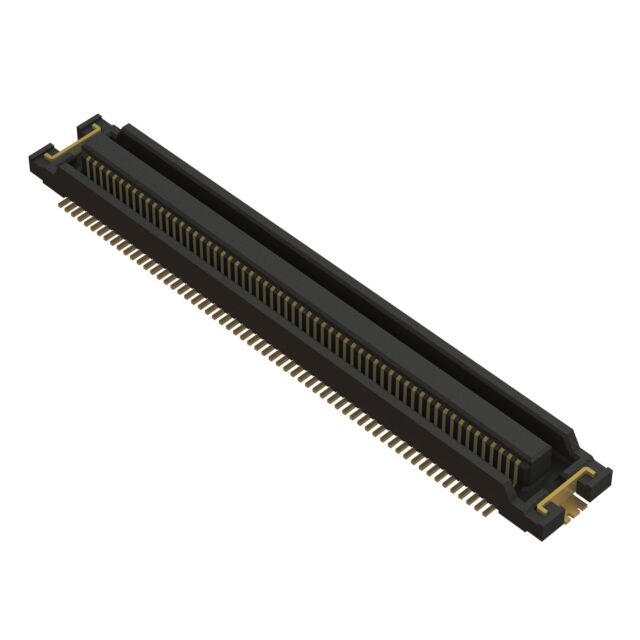

KYOCERA AVX 245046120600868+	3 mm 3.5 mm 4 mm 4.5 mm	2	0.02 "	0.5 mm	Gold	Receptacle Center Strip Contacts	Pick and Place Solder Retention	120	Surface Mount	2.5 mm	0.098 in
KYOCERA AVX 145046060030868+	3 mm	2	0.02 "	0.5 mm	Gold	Plug Outer Shroud Contacts		60	Surface Mount		0.091 "	2.3 mm
KYOCERA AVX 145046100630868+	3 mm	2	0.02 "	0.5 mm	Gold	Plug Outer Shroud Contacts	Pick and Place Solder Retention	100	Surface Mount		0.091 "	2.3 mm
KYOCERA AVX 145046020645868+		2	0.02 "	0.5 mm	Gold	Plug Outer Shroud Contacts	Pick and Place Solder Retention	20	Surface Mount			3.8 mm	0.15 in
KYOCERA AVX 145046120130868+	3 mm	2	0.02 "	0.5 mm	Gold	Plug Outer Shroud Contacts	Solder Retention	120	Surface Mount		0.091 "	2.3 mm
KYOCERA AVX 145046030145868+		2	0.02 "	0.5 mm	Gold	Plug Outer Shroud Contacts	Solder Retention	30	Surface Mount			3.8 mm	0.15 in
KYOCERA AVX 145046060130868+	3 mm	2	0.02 "	0.5 mm	Gold	Plug Outer Shroud Contacts	Solder Retention	60	Surface Mount		0.091 "	2.3 mm
KYOCERA AVX 145046100635868+	3.5 mm	2	0.02 "	0.5 mm	Gold	Plug Outer Shroud Contacts	Pick and Place Solder Retention	100	Surface Mount	2.8 mm	0.11 in
