S1 Series

Catalog

RELAY REED 4KV SPST 24V SIP W/DI

Part	Contact Form	Coil Type	Termination Style	Contact Material	Features	Mounting Type	Release Time	Coil Voltage	Operate Time	Coil Current	Switching Voltage [Max]	Must Release Voltage	Contact Rating (Current)	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]
Sensata-Crydom S1-2404D	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)	Diode	Through Hole	0.5 ms	24 VDC	1 ms	24 mA	300 VAC 350 VDC	1.25 VDC	1 A	16 VDC	85 °C	-40 C
Sensata-Crydom S1-1204D	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)	Diode	Through Hole	0.5 ms	12 VDC	1 ms	24 mA	300 VAC 350 VDC	1.25 VDC	1 A		85 °C	-40 C
Sensata-Crydom S1-2404M	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)	EMI Shielded	Through Hole	0.5 ms	24 VDC	1 ms	24 mA	300 VAC 350 VDC	1.25 VDC	1 A	16 VDC	85 °C	-40 C
Sensata-Crydom S1-0504M	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)	EMI Shielded	Through Hole	0.5 ms	5 VDC	1 ms	27.8 mA	300 VAC 350 VDC	1.25 VDC	1 A	4 VDC	85 °C	-40 C

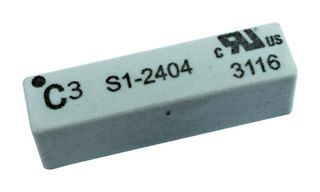

Sensata-Crydom S1-1204M	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)	EMI Shielded	Through Hole	0.5 ms	12 VDC	1 ms	24 mA	300 VAC 350 VDC	1.25 VDC	1 A		85 °C	-40 C
Sensata-Crydom S1-1204	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)		Through Hole	0.5 ms	12 VDC	1 ms	24 mA	300 VAC 350 VDC	1.25 VDC	1 A		85 °C	-40 C
Sensata-Crydom S1-2404	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)		Through Hole	0.5 ms	24 VDC	1 ms	24 mA	300 VAC 350 VDC	1.25 VDC	1 A	16 VDC	85 °C	-40 C

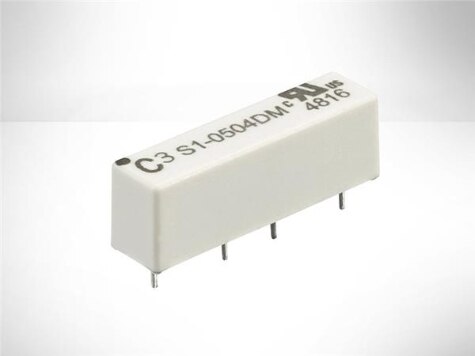

Sensata-Crydom S1-1204DM	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)	Diode EMI Shielded	Through Hole	0.5 ms	12 VDC	1 ms	24 mA	300 VAC 350 VDC	1.25 VDC	1 A		85 °C	-40 C
Sensata-Crydom S1-0504DM	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)	Diode EMI Shielded	Through Hole	0.5 ms	5 VDC	1 ms	27.8 mA	300 VAC 350 VDC	1.25 VDC	1 A	4 VDC	85 °C	-40 C
Sensata-Crydom S1-0504D	SPST-NO (1 Form A)	Non Latching	PC Pin	Rhodium (Rh)	Diode	Through Hole	0.5 ms	5 VDC	1 ms	27.8 mA	300 VAC 350 VDC	1.25 VDC	1 A	4 VDC	85 °C	-40 C
