1904025 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

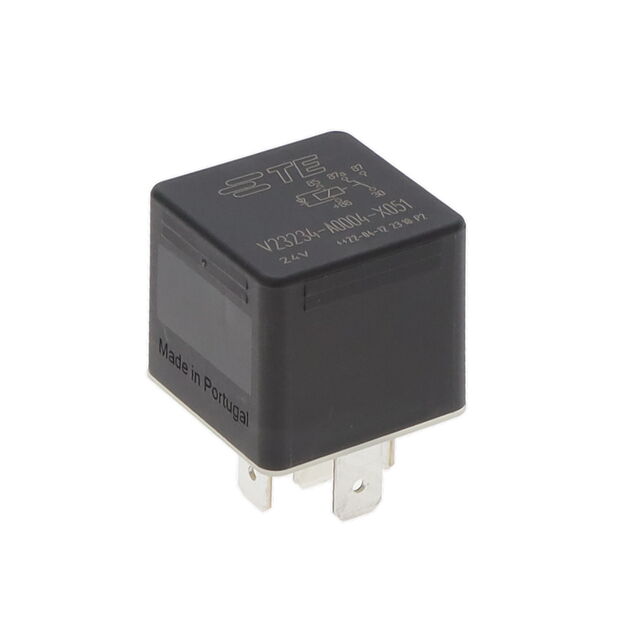

POWER RELAY 24VDC SPDT(22MM 28.5MM 16MM) PLUG-IN
| Part | Contact Material | Coil Power | Coil Resistance | Coil Current | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Mounting Type | Contact Rating (Current) | Contact Form | Must Release Voltage | Release Time | Switching Voltage | Coil Voltage | Coil Type | Operate Time | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver (Ag) | 2.3 W | 255 Ohms | 94 mA | 16 VDC | 125 °C | -40 C | Plug In Quick Connect - 0.250" (6.3mm) | Socketable | 50 A | SPDT (1 Form C) | 3 VDC | 10 ms | 24 VDC | 24 VDC | Non Latching | 10 ms | |
 TE Connectivity AMP Connectors | Silver (Ag) | 2.3 W | 255 Ohms | 94 mA | 16 VDC | 125 °C | -40 C | Plug In Quick Connect - 0.250" (6.3mm) | Socketable | 50 A | SPDT (1 Form C) | 3 VDC | 10 ms | 24 VDC | 24 VDC | Non Latching | 10 ms | Diode |
