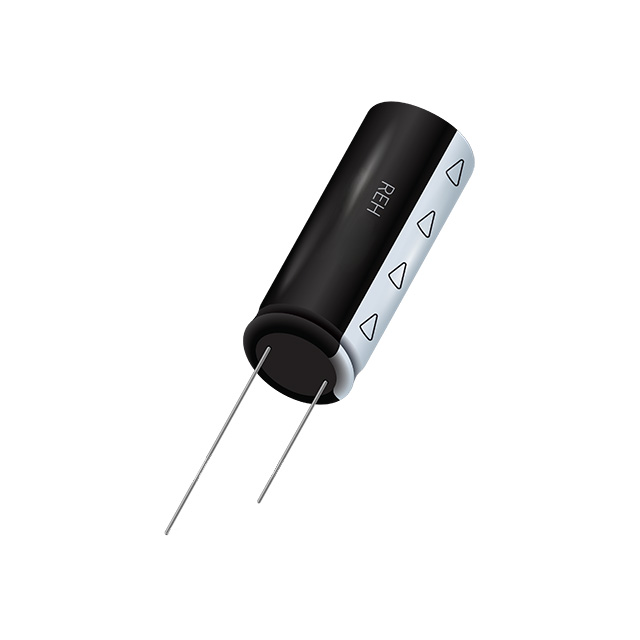

reh Series

Catalog

CAPACITOR: ELECTROLYTIC; THT; 1000UF; 25VDC; Ø12.5X20MM; ±20%; REH

Part	Package / Case	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ High Frequency	Voltage - Rated	Polarization	Applications	Tolerance	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KYOCERA AVX REH1220102M025K
KYOCERA AVX REH1025222M016K	Can Radial	0.197 "	5 mm	Through Hole	1.063 in	27 mm	0.394 in	10 mm	2.2 mF	980 mA	16 V	Polar	General Purpose	20 %	4000 Hrs	125 °C	-40 C	784 mA
KYOCERA AVX REH1225222M010K	Can Radial	0.197 "	5 mm	Through Hole	1.063 in	27 mm	0.492 in	12.5 mm	2.2 mF	1.43 A	10 V	Polar	General Purpose	20 %	5000 Hrs	125 °C	-40 C	1.144 A
KYOCERA AVX REH1630102M050B	Can Radial	0.295 in	7.5 mm	Through Hole			0.63 in	16 mm	1000 µF	2180 mA	50 VDC	Polar	General Purpose	20 %	5000 Hrs	125 °C	-40 C	1.635 A	1.26 in	32 mm
KYOCERA AVX REH1225152M035K	Can Radial	0.197 "	5 mm	Through Hole	1.063 in	27 mm	0.492 in	12.5 mm	1.5 mF	2.23 A	35 V	Polar	General Purpose	20 %	5000 Hrs	125 °C	-40 C	1.6725 A
