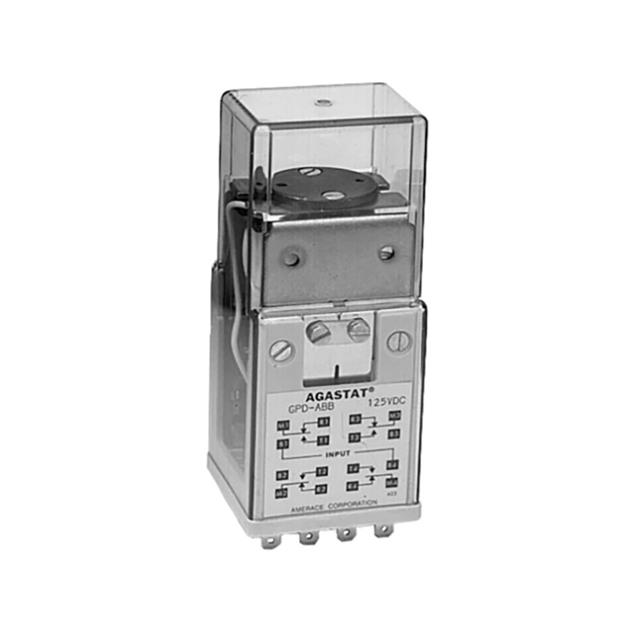

1423155 Series

Catalog

RELAY GEN PURPOSE

Part	Coil Type	Termination Style	Release Time	Must Release Voltage	Mounting Type	Relay Type	Must Operate Voltage	Contact Material	Coil Voltage	Approval Agency	Operating Temperature [Max]	Operate Time	Contact Rating (Current)	Contact Form	Features
TE Connectivity AMP Connectors 3-1423155-5	Non Latching	Plug In	30 ms	2.4 VDC	Socketable	General Purpose	18 VDC	Silver (Ag)	24 VDC	CSA UR	60 °C	15 ms	10 A	4PDT (4 Form C)
TE Connectivity AMP Connectors 3-1423155-4	Non Latching	Plug In	30 ms	2.4 VDC	Socketable	General Purpose	18 VDC	Silver (Ag)	24 VDC	CSA UR	60 °C	15 ms	10 A	4PDT (4 Form C)
TE Connectivity AMP Connectors 1423155-6	Non Latching	Plug In			Socketable	General Purpose	100 VDC	Silver (Ag)	125 VDC	CSA UR	60 °C	15 ms	10 A	SPDT (1 Form C)	Magnetic Blowout
TE Connectivity AMP Connectors 3-1423155-1	Non Latching	Plug In	30 ms	4.8 VDC	Socketable	General Purpose	36 VDC	Silver (Ag)	48 VDC	CSA UR	60 °C	15 ms	10 A	4PDT (4 Form C)
TE Connectivity AMP Connectors GPDQ	Non Latching	Plug In	30 ms		Socketable	General Purpose		Silver (Ag)	48 VDC	CSA UR	60 °C	15 ms	10 A	4PDT (4 Form C)
