MF-FSML/X Series

Catalog

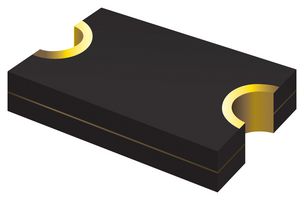

PTC RESETTABLE FUSE 1A(HOLD) 2A(TRIP) 8V 50A 0.5W 2S 0.04OHM SMD SOLDER PAD 0603 1.85 X 1.05 X 0.7MM T/R

Part	Approval Agency	Thickness (Max) [Max]	Thickness (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Voltage - Max [Max]	Time to Trip	Type	Current - Trip (It)	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Resistance - Post Trip (R1) (Max) [Max]
Bourns Inc. MF-FSML100/8-2	cUL cURus TUV	0.7 mm	0.028 in	40 mOhms	85 °C	-40 C	Surface Mount	0.065 in	0.85 mm	1.65 mm	0.033 "	0603 (1608 Metric) Concave	8 V	2 s	Polymeric	2 A	50 A	1 A	220 mOhms
