sz1smb Series

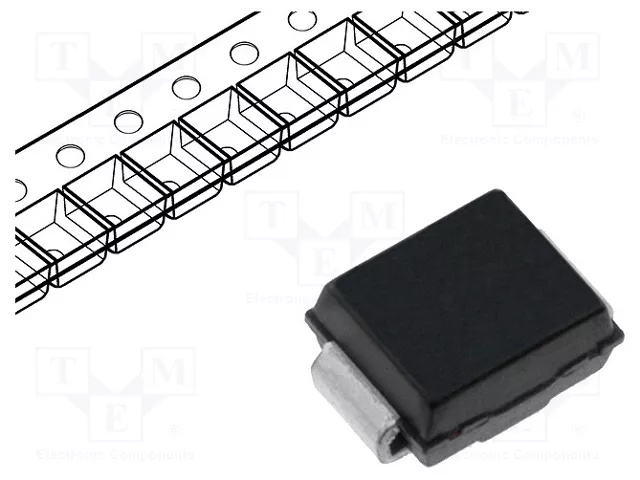

Zen TVS 600W 24V UNI DO-214AA TR13

Catalog

Zen TVS 600W 24V UNI DO-214AA TR13

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Grade	Qualification	Package / Case	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Unidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Type	Voltage - Breakdown (Min) [Min]	Power Line Protection	Power - Peak Pulse	Bidirectional Channels [custom]	Capacitance @ Frequency
LITTELFUSE SZ1SMB24AT3G	150 °C	-65 °C	SMB	Automotive	AEC-Q101	DO-214AA SMB	24 V	38.9 V	Surface Mount	1	15.4 A	Zener	26.7 V		600 W
LITTELFUSE SZ1SMB24CAT3G	150 °C	-65 °C	SMB	Automotive	AEC-Q101	DO-214AA SMB	24 V	38.9 V	Surface Mount		15.4 A	Zener	26.7 V		600 W	1	366 pF

Catalog

Zen TVS 600W 24V UNI DO-214AA TR13

Description

The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping and high surge capability, as well as fast response time. The SZ1SMB series is supplied in the Littelfuse exclusive, cost-effective, highly reliable package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial and consumer applications.
