PRPC020 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 40POS 2.54MM

Part	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Insulation Color	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions	Current Rating (Amps)	Fastening Type	Contact Type	Shrouding	Contact Finish Thickness - Post	Style	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]

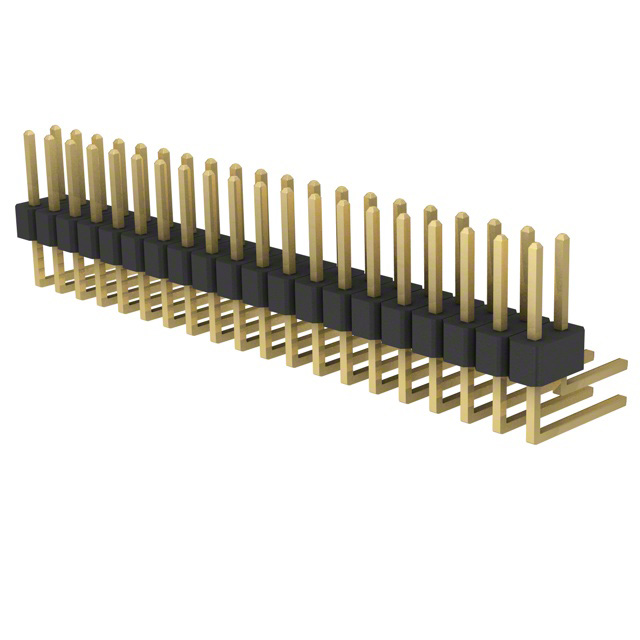

Sullins Connector Solutions PRPC020DBBN-M71RC	All	Gold	5.58 mm	0.22 in	0.1 "	2.54 mm	2	Black	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Solder	40	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Right Angle Through Hole	Gold	UL94 V-0	Flash	0.197 "	5 mm	Square	0.23 in	5.84 mm	Brass	-40 C	105 ░C	Header Breakaway

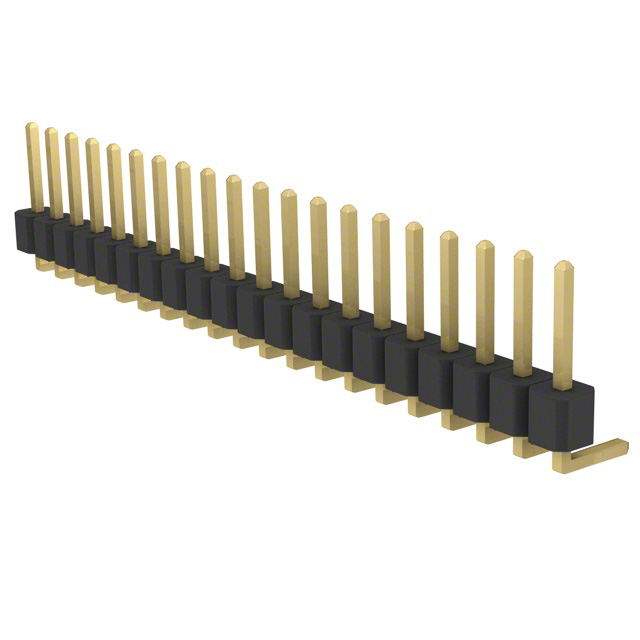

Sullins Connector Solutions PRPC020SBAN-M71RC	All	Gold	3.05 mm	0.12 in	0.1 "	2.54 mm		Black	Polybutylene Terephthalate (PBT)			Solder	20	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Right Angle Through Hole	Gold	UL94 V-0	Flash	0.098 "	2.5 mm	Square	0.23 in	5.84 mm	Brass	-40 C	105 ░C	Header Breakaway	1
Sullins Connector Solutions PRPC020DAAN-RC	All	Gold	3.05 mm	0.12 in	0.1 "	2.54 mm	2	Black	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Solder	40	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Through Hole	Gold	UL94 V-0	Flash	0.098 "	2.5 mm	Square	0.23 in	5.84 mm	Brass	-40 C	105 ░C	Header Breakaway		0.448 in	11.39 mm
Sullins Connector Solutions PRPC020SFAN-RC	All	Gold	3.05 mm	0.12 in	0.1 "	2.54 mm		Black	Polybutylene Terephthalate (PBT)			Solder	20	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Through Hole	Gold	UL94 V-0	Flash	0.098 "	2.5 mm	Square	0.318 in	8.08 mm	Brass	-40 C	105 ░C	Header Breakaway	1			13.63 mm	0.537 in

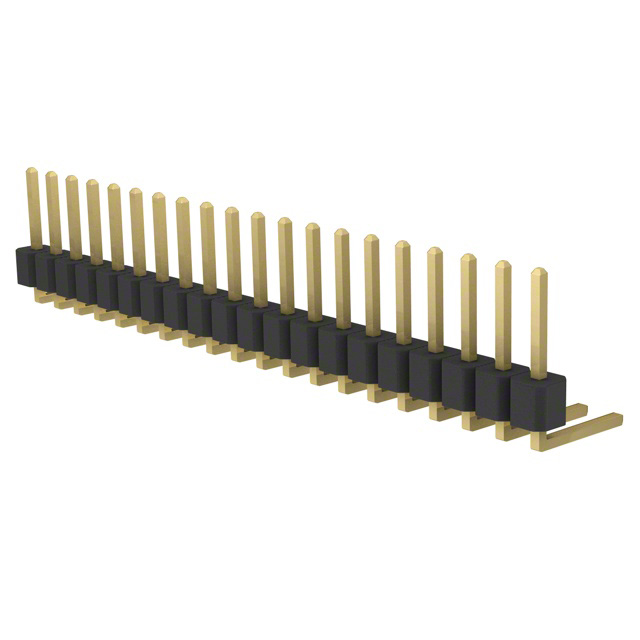

Sullins Connector Solutions PRPC020SBBN-M71RC	All	Gold	5.58 mm	0.22 in	0.1 "	2.54 mm		Black	Polybutylene Terephthalate (PBT)			Solder	20	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Right Angle Through Hole	Gold	UL94 V-0	Flash	0.098 "	2.5 mm	Square	0.23 in	5.84 mm	Brass	-40 C	105 ░C	Header Breakaway	1
Sullins Connector Solutions PRPC020DFAN-RC	All	Gold	3.05 mm	0.12 in	0.1 "	2.54 mm	2	Black	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Solder	40	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Through Hole	Gold	UL94 V-0	Flash	0.098 "	2.5 mm	Square	0.318 in	8.08 mm	Brass	-40 C	105 ░C	Header Breakaway				13.63 mm	0.537 in

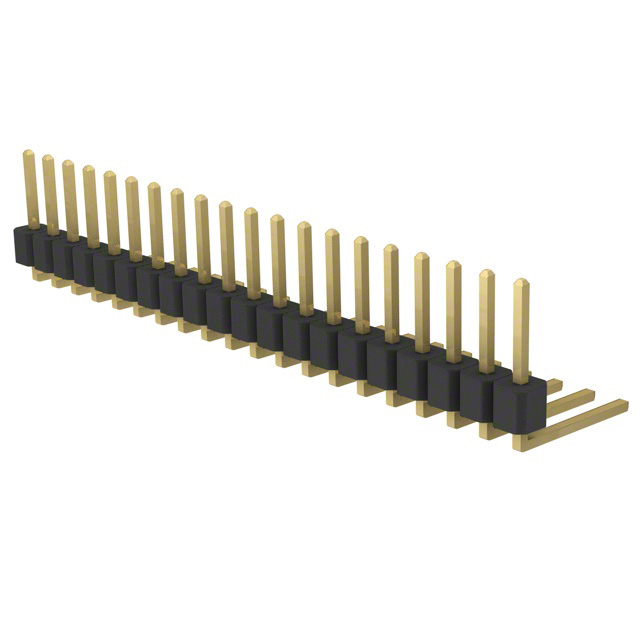

Sullins Connector Solutions PRPC020SBCN-M71RC	All	Gold	8.13 mm	0.32 in	0.1 "	2.54 mm		Black	Polybutylene Terephthalate (PBT)			Solder	20	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Right Angle Through Hole	Gold	UL94 V-0	Flash	0.098 "	2.5 mm	Square	0.23 in	5.84 mm	Brass	-40 C	105 ░C	Header Breakaway	1

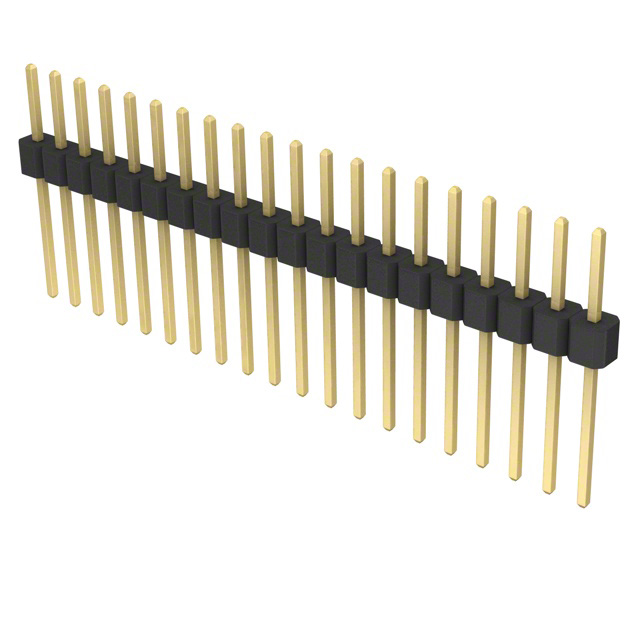

Sullins Connector Solutions PRPC020SADN-RC	All	Gold	10.67 mm	0.42 in	0.1 "	2.54 mm		Black	Polybutylene Terephthalate (PBT)			Solder	20	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Through Hole	Gold	UL94 V-0	Flash	0.098 "	2.5 mm	Square	0.23 in	5.84 mm	Brass	-40 C	105 ░C	Header Breakaway	1	0.748 in	19.01 mm
Sullins Connector Solutions PRPC020SAAN-RC	All	Gold	3.05 mm	0.12 in	0.1 "	2.54 mm		Black	Polybutylene Terephthalate (PBT)			Solder	20	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Through Hole	Gold	UL94 V-0	Flash	0.098 "	2.5 mm	Square	0.23 in	5.84 mm	Brass	-40 C	105 ░C	Header Breakaway	1	0.448 in	11.39 mm

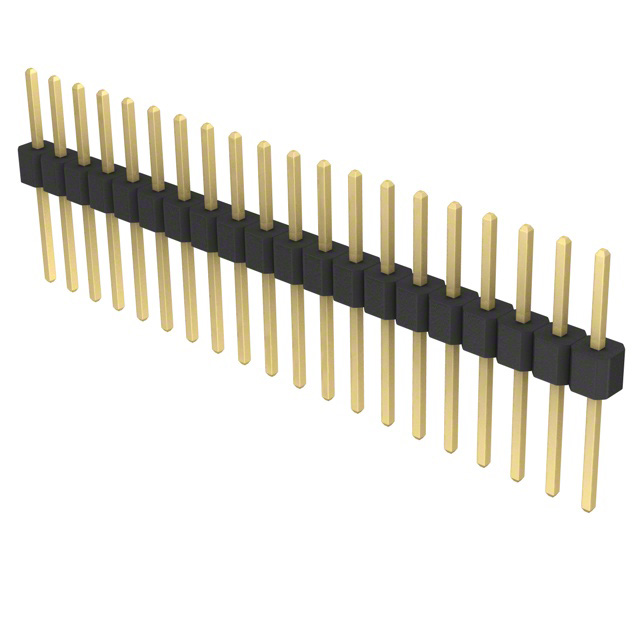

Sullins Connector Solutions PRPC020SACN-RC	All	Gold	8.13 mm	0.32 in	0.1 "	2.54 mm		Black	Polybutylene Terephthalate (PBT)			Solder	20	3 A	Push-Pull	Male Pin	Unshrouded	Flash	Board to Board Cable	Through Hole	Gold	UL94 V-0	Flash	0.098 "	2.5 mm	Square	0.23 in	5.84 mm	Brass	-40 C	105 ░C	Header Breakaway	1			16.47 mm	0.648 in
