IPU80R4 Series
Manufacturer: INFINEON
Beta
⌘K

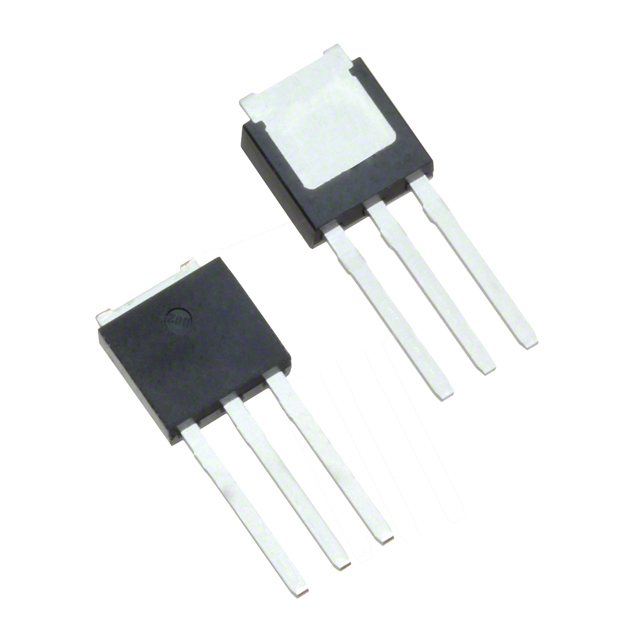

COOLMOS™ P7 N-CHANNEL SUPERJUNCTION MOSFET 800 V ; IPAK TO-251 PACKAGE; 4500 MOHM; PRICE/PERFORMANCE
| Part | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) @ Vds | Current - Continuous Drain (Id) @ 25°C | Package / Case | Rds On (Max) @ Id, Vgs | Mounting Type | Vgs(th) (Max) @ Id | Power Dissipation (Max) | Drain to Source Voltage (Vdss) | Supplier Device Package | Vgs (Max) | Technology | Operating Temperature [Max] | Operating Temperature [Min] | Gate Charge (Qg) (Max) @ Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | N-Channel | 10 V | 250 pF | 1.5 A | IPAK TO-251-3 Short Leads TO-251AA | 4.5 Ohm | Through Hole | 3.5 V | 13 W | 800 V | PG-TO251-3-21 | 20 V | MOSFET (Metal Oxide) | 150 °C | -55 °C | 4 nC |
