172036 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

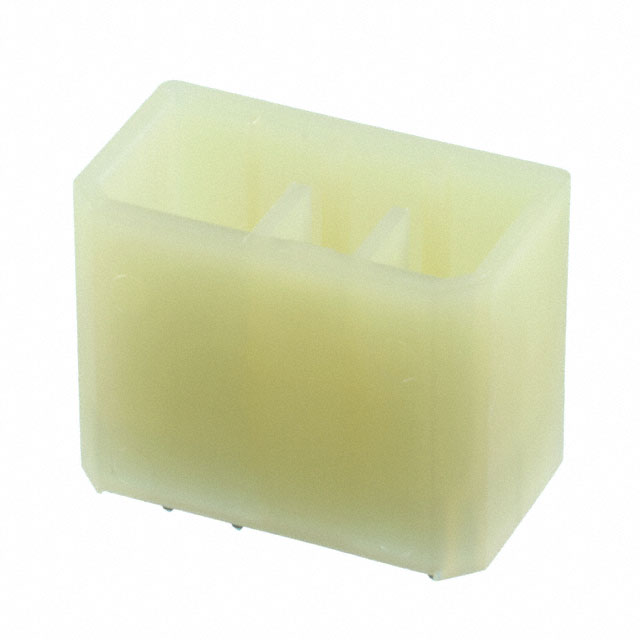

CONN MULTIPLE INTERLOCK CONNECTOR HDR 7 POS SOLDER ST THRU-HOLE
| Part | Applications | Contact Length - Post [x] | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Mounting Type | Contact Type | Contact Material | Shrouding | Insulation Material | Style | Contact Finish - Post | Connector Type | Fastening Type | Number of Positions Loaded | Number of Rows [custom] | Insulation Color | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 0.157 in | 4 mm | 0.236 in | 6 mm | 0.866 in | 22 mm | Through Hole | Tab | Brass | Shrouded - 4 Wall | Nylon 6/6 Polyamide (PA66) | Board to Cable/Wire | Tin | Header | Locking Ramp | All | 2 | Natural | Solder | -30 ░C | 105 ░C | 7 | Rectangular |
