8444 Series

Catalog

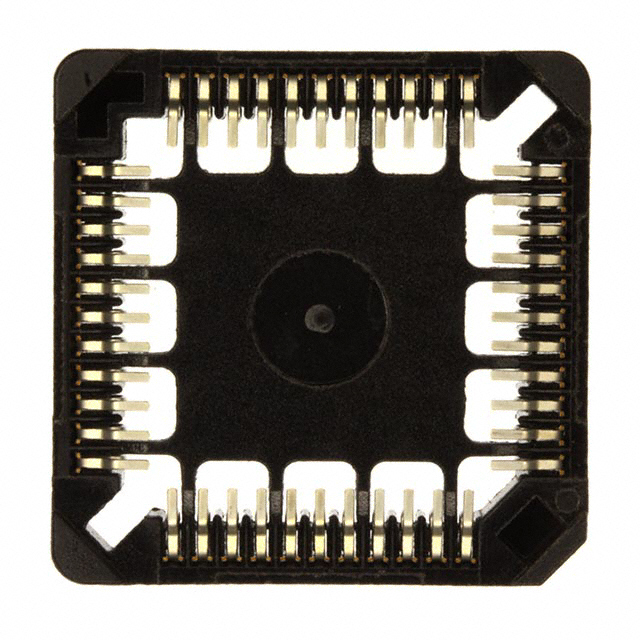

IC & COMPONENT SOCKET, 44 CONTACTS, PLCC SOCKET, 1.27 MM, 8400 SERIES, COPPER ALLOY

Part	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Material - Mating	Housing Material	Pitch - Mating	Pitch - Mating	Type	Features	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Termination	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post [custom]	Contact Resistance
3M Electronic Specialty 8444-21A1-RK-TP	UL94 V-0	1 A	0.132 "	3.35 mm	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	1.27 mm	0.05 in	PLCC	Closed Frame	0.05 in	1.27 mm	-40 C	105 ░C	11	44	4	Solder	Tin	Surface Mount	4.06 µm	160 µin	Copper Alloy
3M Electronic Specialty 8444-21B1-RK-TR	UL94 V-0	1 A	0.132 "	3.35 mm	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	1.27 mm	0.05 in	PLCC	Closed Frame	0.05 in	1.27 mm	-40 C	105 ░C	11	44	4	Solder	Tin	Surface Mount	4.06 µm	160 µin	Copper Alloy	15 mOhm
3M Electronic Specialty 8444-21B1-RK-TP	UL94 V-0	1 A	0.132 "	3.35 mm	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	1.27 mm	0.05 in	PLCC	Closed Frame	0.05 in	1.27 mm	-40 C	105 ░C	11	44	4	Solder	Tin	Surface Mount	4.06 µm	160 µin	Copper Alloy
