846-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 17POS 0.125
| Part | Termination Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Number of Positions/Bay/Row [custom] | Gender | Card Type | Read Out | Card Thickness [Max] | Card Thickness [Min] | Color | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Material | Contact Type | Contact Finish | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

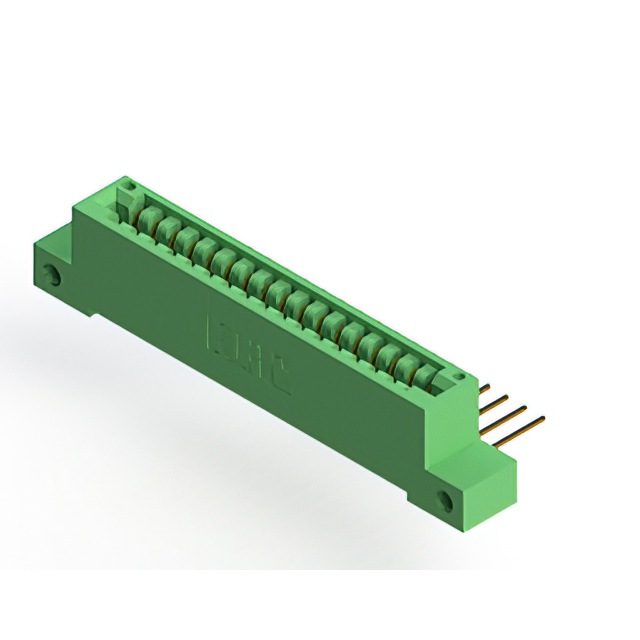

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Right Angle Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Solder | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm |

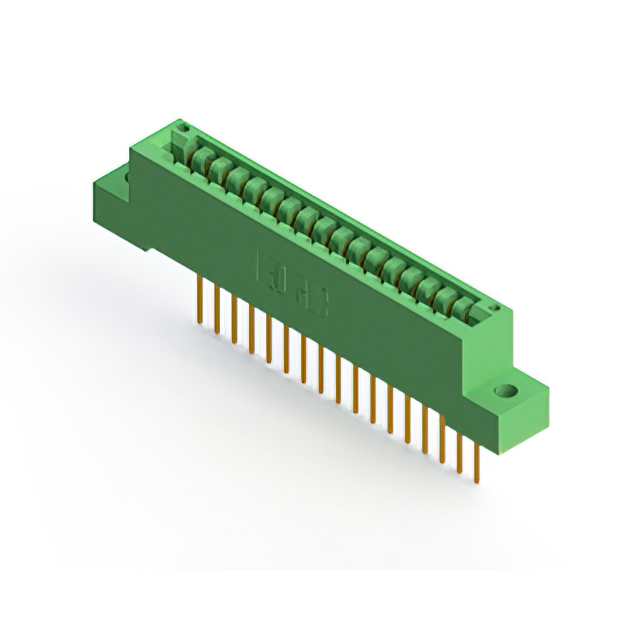

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Solder | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | ||

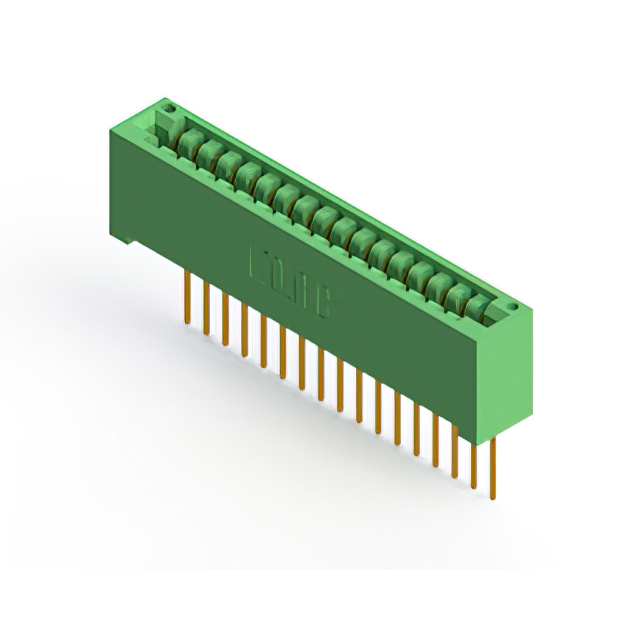

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Wire Wrap | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Right Angle Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Solder | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm |

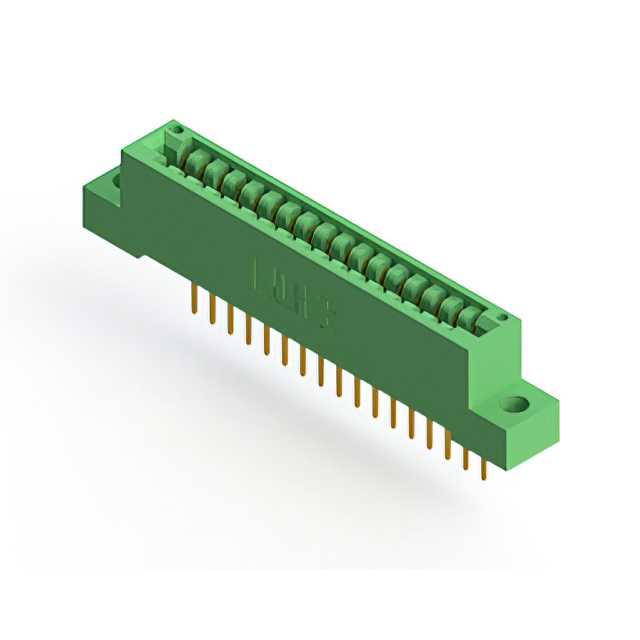

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Solder | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm |

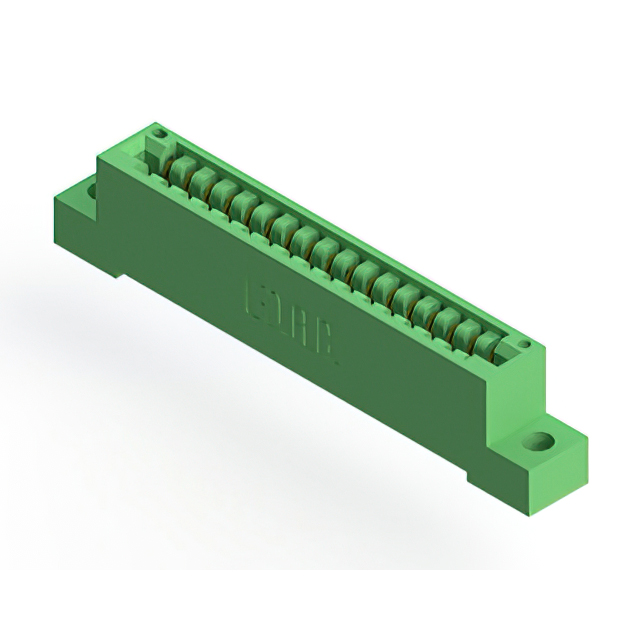

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Solder | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm |

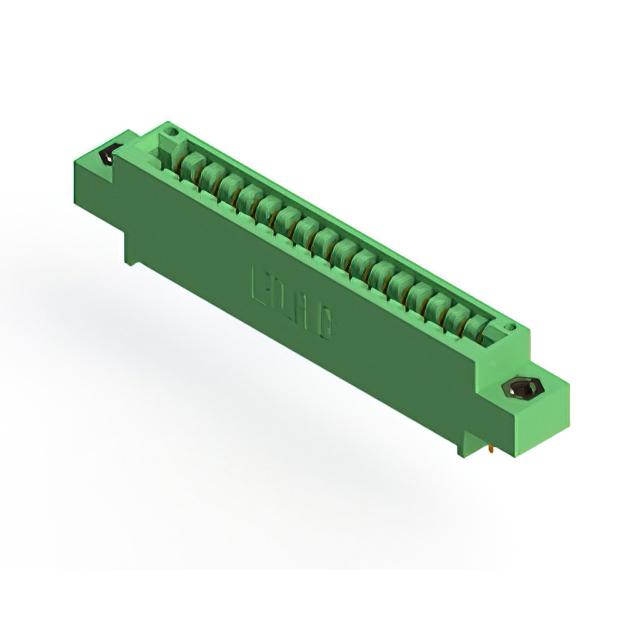

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Solder | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | M3 Threaded Insert Top Mount Opening | ||

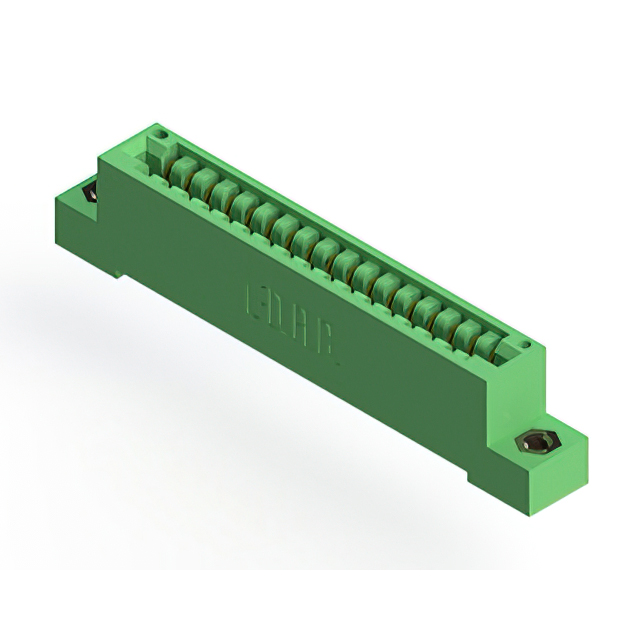

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Solder | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Right Angle Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Solder | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm |

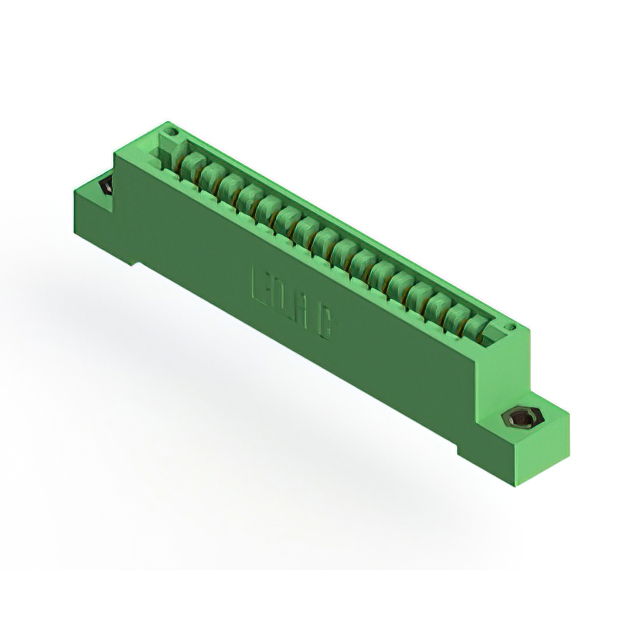

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Through Hole | 1 | 17 | Female | Non Specified - Single Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | Solder | Copper Alloy | Cantilever | Gold | 3.18 mm | 0.125 in | 4-40 Threaded Insert Top Mount Opening |
