FKCN Series

Catalog

PLUGGABLE TERMINAL BLOCKS 15 POS 5.08MM PITCH PLUG 24-16AWG SPRING

Part	Plug Wire Entry	Color	Contact Mating Finish	Positions Per Level	Pitch	Pitch	Number of Levels	Termination Style	Current - IEC	Number of Positions	Current - UL	Voltage - UL	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - IEC	Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Features	Wire Strip Length	Insulation Height [z]	Insulation Height [z]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Housing Material	Material Flammability Rating	Positions Per Level [custom]
Phoenix Contact 1754924	180 °	Green	Tin	15	5.08 mm	0.2 in	1	Push-In Spring Screwless - Leg Spring	12 A	15	10 A	300 V	Free Hanging (In-Line)	14 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²	Mating Flange Retention Latches (Non-Wire Side)
Phoenix Contact 1754694	180 °	Green	Tin	15	5.08 mm	0.2 in	1	Push-In Spring Screwless - Leg Spring	12 A	15	10 A	300 V	Free Hanging (In-Line)	14 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²		10 mm	0.429 in	10.9 mm	1.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	UL94 V-0
Phoenix Contact 1732894	180 °	Green	Tin	18	5 mm	0.197 in	1	Screwless - Push-In Spring	12 A	18			Free Hanging (In-Line)	16 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²		10 mm	0.429 in	10.9 mm	1.5 mm˛	0.2 mm˛	Polybutylene Terephthalate (PBT)	UL94 V-0
Phoenix Contact 1754704	180 °	Green	Tin	16	5.08 mm	0.2 in	1	Push-In Spring Screwless - Leg Spring	12 A	16	10 A	300 V	Free Hanging (In-Line)	14 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²		10 mm	0.429 in	10.9 mm			Polyamide (PA) Nylon	UL94 V-0
Phoenix Contact 1732988	180 °	Green	Tin	4	5 mm	0.197 in	1	Screwless - Push-In Spring	12 A	4			Free Hanging (In-Line)	16 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²	Mating Flange Retention Latches (Non-Wire Side)	10 mm	0.429 in	10.9 mm	1.5 mm˛	0.2 mm˛	Polybutylene Terephthalate (PBT)	UL94 V-0
Phoenix Contact 1754908	180 °	Green	Tin	13	5.08 mm	0.2 in	1	Push-In Spring Screwless - Leg Spring	12 A	13	10 A	300 V	Free Hanging (In-Line)	14 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²	Mating Flange Retention Latches (Non-Wire Side)	10 mm	0.429 in	10.9 mm			Polyamide (PA) Nylon	UL94 V-0

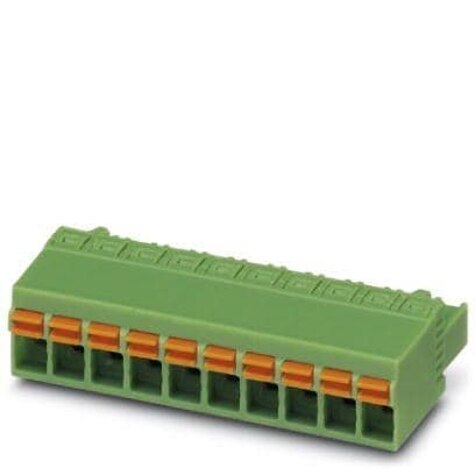

Phoenix Contact 1732797	180 °	Green	Tin		5 mm	0.197 in	1	Screwless - Push-In Spring	12 A	7			Free Hanging (In-Line)	16 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²		10 mm	0.429 in	10.9 mm			Polybutylene Terephthalate (PBT)	UL94 V-0	7

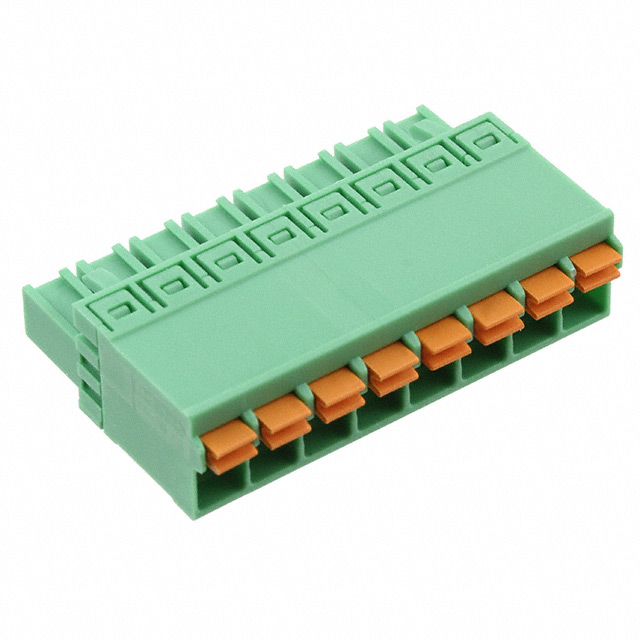

Phoenix Contact 1754623	180 °	Green	Tin	8	5.08 mm	0.2 in	1	Push-In Spring Screwless - Leg Spring	12 A	8	10 A	300 V	Free Hanging (In-Line)	14 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²		10 mm	0.429 in	10.9 mm			Polyamide (PA) Nylon	UL94 V-0
Phoenix Contact 1754681	180 °	Green	Tin	14	5.08 mm	0.2 in	1	Push-In Spring Screwless - Leg Spring	12 A	14	10 A	300 V	Free Hanging (In-Line)	14 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²		10 mm	0.429 in	10.9 mm			Polyamide (PA) Nylon	UL94 V-0
Phoenix Contact 1733068	180 °	Green	Tin	13	5 mm	0.197 in	1	Screwless - Push-In Spring	12 A	13			Free Hanging (In-Line)	16 AWG	24 AWG	630 V	Plug Female Sockets	1.5 mm²	0.2 mm²	Mating Flange Retention Latches (Non-Wire Side)	10 mm	0.429 in	10.9 mm	1.5 mm˛	0.2 mm˛	Polybutylene Terephthalate (PBT)	UL94 V-0
