Q48SC Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 36-75VIN 12V 33A 400W NEG LOGIC, 0.17 PIN, DIGITAL, TRIM PIN

Part	Mounting Type	Applications	Control Features	Number of Outputs	Voltage - Isolation	Current - Output (Max) [Max]	Supplier Device Package	Standard Number	Efficiency	Features	Voltage - Output 1	Type	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Power (Watts)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)
Delta Electronics Q48SC12033NRDC	Through Hole	ITE (Commercial)	Active Low Enable	1	1.5 kV	33 A	Quarter Brick	60950-1	95 %	Adjustable Output Remote On/Off Remote Sense	12 V	Isolated Module	36 V	36.8 mm	58.4 mm	1.45 in	2.3 in	0.4 "	10.2 mm	75 V	400 W	Quarter Brick	85 °C	-40 C
Delta Electronics Q48SC12025NRAC

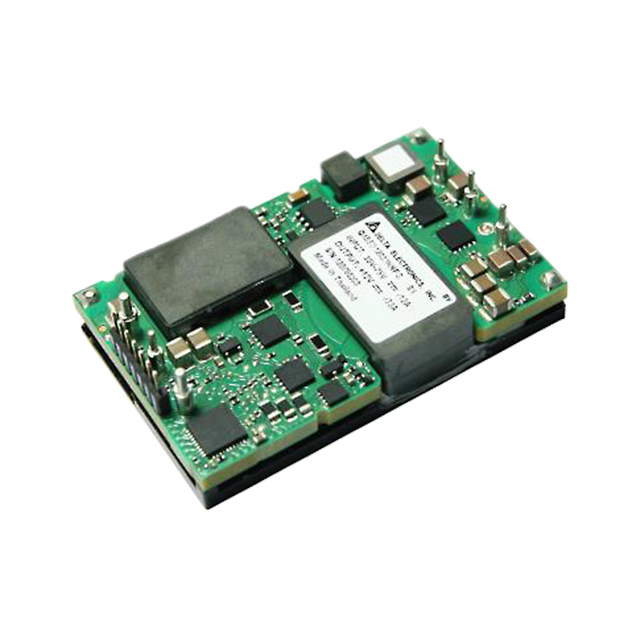

Delta Electronics Q48SC12033NRDH	Through Hole	ITE (Commercial)	Active Low Enable	1	1.5 kV	33 A	Quarter Brick		95 %	OCP OTP OVP Remote On/Off UVLO	12 V	Isolated Module Digital	36 V	36.8 mm	58.4 mm	1.45 in	2.3 in	0.5 in	12.7 mm	75 V	396 W	Quarter Brick	85 °C	-40 °C
Delta Electronics Q48SC12042NRDH	Through Hole	ITE (Commercial)	Active Low Enable	1	1.5 kV				95 %	OCP OTP OVP Remote On/Off UVLO	12 V	Isolated Module Digital	36 V	36.8 mm	58.4 mm	1.45 in	2.3 in	0.5 in	12.7 mm	75 V	500 W	1/4 Brick 16-DIP Module	85 °C	-40 C	42 A

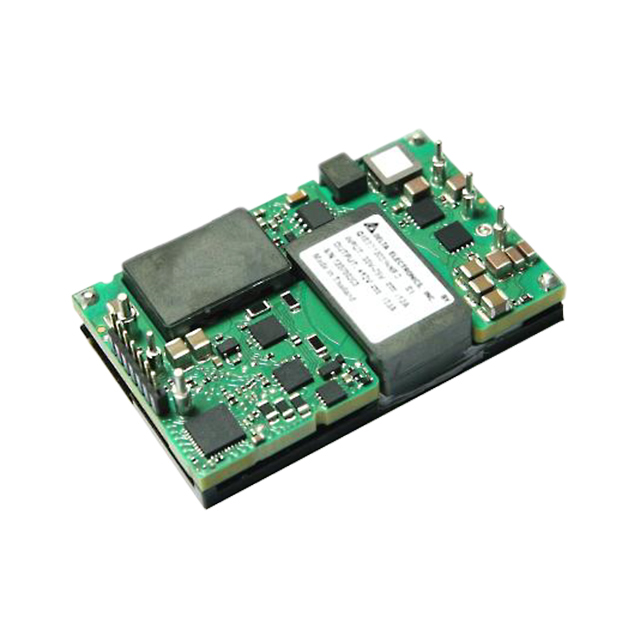

Delta Electronics Q48SC12025NRDH	Through Hole	ITE (Commercial)	Active Low Enable	1	1.5 kV	25 A	Quarter Brick		95.1 %	OCP OTP OVP Remote On/Off UVLO	12 V	Isolated Module Digital	36 V	36.8 mm	58.4 mm	1.45 in	2.3 in	0.5 in	12.7 mm	75 V	300 W	Quarter Brick	85 °C	-40 °C
Delta Electronics Q48SC12025NNAC
