0964-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

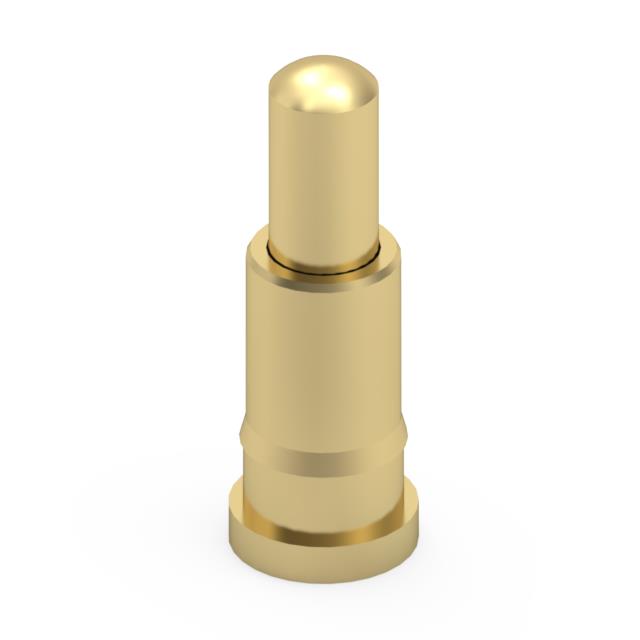

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish | Mating Cycles | Operating Force - Initial | Recommended Working Height | Recommended Working Height | Minimum Working Height [Min] | Minimum Working Height [Min] | Contact Finish Thickness | Contact Finish Thickness | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Mid Compression | Contact Material | Mounting Type | Contact Type | Current Rating (Amps) | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.206 in | 5.23 mm | Gold | 1000000 | 15 gf | 4.21 mm | 0.166 in | 0.126 in | 3.2 mm | 20 µin | 0.51 µm | 0.072 in | 1.83 mm | 100 gf | Brass Alloy | Surface Mount | Sleeve & Plunger (Pogo Pins) | 5.2 A | 0.042 in | 1.07 mm |
