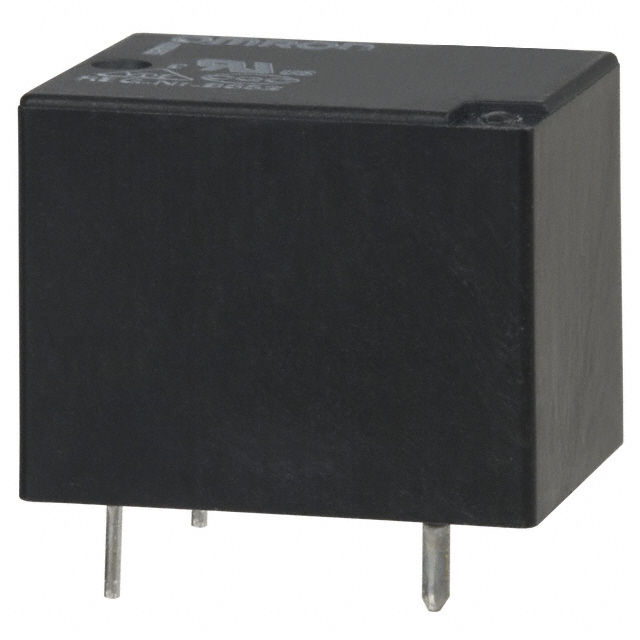

G5LA-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 9V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Switching Voltage | Operate Time | Mounting Type | Termination Style | Must Release Voltage | Coil Type | Release Time | Contact Rating (Current) | Contact Material | Coil Current | Approval Agency | Seal Rating | Coil Resistance | Coil Insulation | Load - Max Switching | Relay Type | Contact Form | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 9 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 0.9 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 40 mA | UL | Sealed - Flux Protection | 225 Ohms | Class F | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 6.75 VDC |
Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 5 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 0.5 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 72 mA | UL | Sealed - Flux Protection | 69 Ohms | Class F | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 3.75 VDC |
Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 5 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 0.5 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 72 mA | UL | Sealed - Fully | 69 Ohms | Class F | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 3.75 VDC |
Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 48 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 4.8 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 10 mA | UL | Sealed - Fully | 4.8 kOhms | Class F | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 36 VDC |
 Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 24 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 2.4 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 15 mA | CSA | Sealed - Fully | 1.6 kOhms | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 18 VDC | |
 Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 48 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 4.8 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 10 mA | CSA | Sealed - Flux Protection | 4.8 kOhms | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 36 VDC | |
Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 12 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 1.2 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 30 mA | CSA | Sealed - Flux Protection | 400 Ohms | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 9 VDC | |
Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 9 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 0.9 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 40 mA | CSA | Sealed - Flux Protection | 225 Ohms | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 6.75 VDC | |
Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 24 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 2.4 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 15 mA | UL | Sealed - Fully | 1.6 kOhms | Class F | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 18 VDC |
Omron Electronics Inc-EMC Div | 85 °C | -40 °C | 12 VDC | 24 VDC 250 VAC | 10 ms | Through Hole | PC Pin | 1.2 VDC | Non Latching | 5 ms | 10 A | Silver Tin Oxide (AgSnO) | 30 mA | UL | Sealed - Flux Protection | 400 Ohms | Class F | 240 W 2500 VA | General Purpose | SPST-NO (1 Form A) | 9 VDC |
