1734355 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

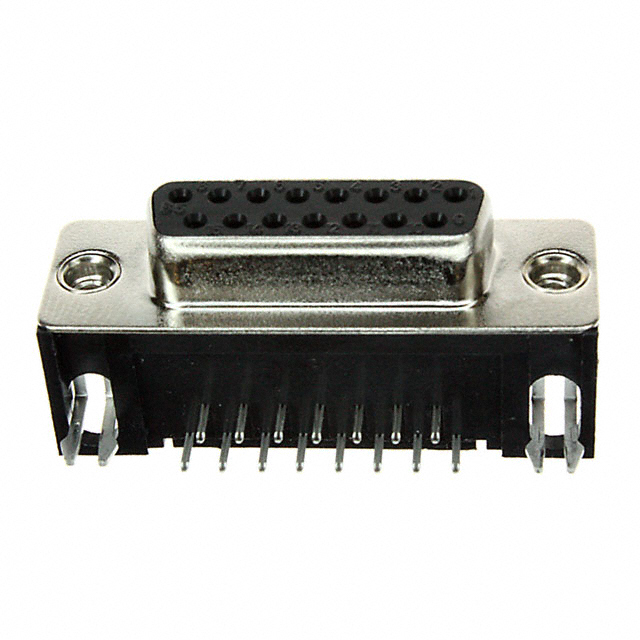

CONN D-SUB RCPT 15POS R/A SOLDER
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Dielectric Material | Current Rating (Amps) | Features | Material Flammability Rating | Contact Finish Thickness | Shell Material, Finish | Mounting Type | Shell Size, Connector Layout | Connector Style | Contact Finish | Connector Type | Number of Positions | Backset Spacing | Backset Spacing | Termination | Number of Rows [custom] | Contact Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 250 V | Phosphor Bronze | Polybutylene Terephthalate (PBT) | 2 A | Board Lock | UL94 V-0 | Flash | Nickel Plated Steel | Right Angle Through Hole | 2 | D-Sub | Gold | Receptacle Female Sockets | 15 | 8.08 mm | 0.318 " | Solder | 2 | Signal | Housing/Shell | 4-40 |
