AYF332535 Series

Catalog

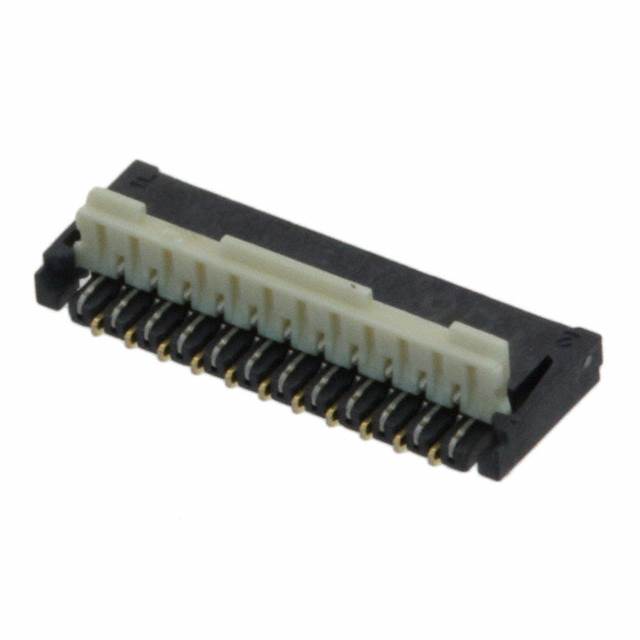

CONN FPC 25POS 0.3MM R/A

Part	Current Rating (Amps)	Mating Cycles	Contact Finish Thickness	Housing Material	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions	Pitch	Pitch	Termination	Contact Finish	Mounting Type	Contact Material	Material Flammability Rating	Locking Feature	Height Above Board [z]	Height Above Board [z]	Flat Flex Type	Cable End Type	FFC, FCB Thickness [custom]	Connector/Contact Type
Panasonic Electronic Components AYF332535A	200 mA	20	Flash	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	-55 C	85 °C	50 V	25	0.012 in	0.3 mm	Solder	Gold	Right Angle Surface Mount	Copper Alloy	UL94 V-0	Backlock Flip Lock	0.88 mm	0.035 in	FPC	Tapered	0.2 mm	Contacts Top and Bottom
