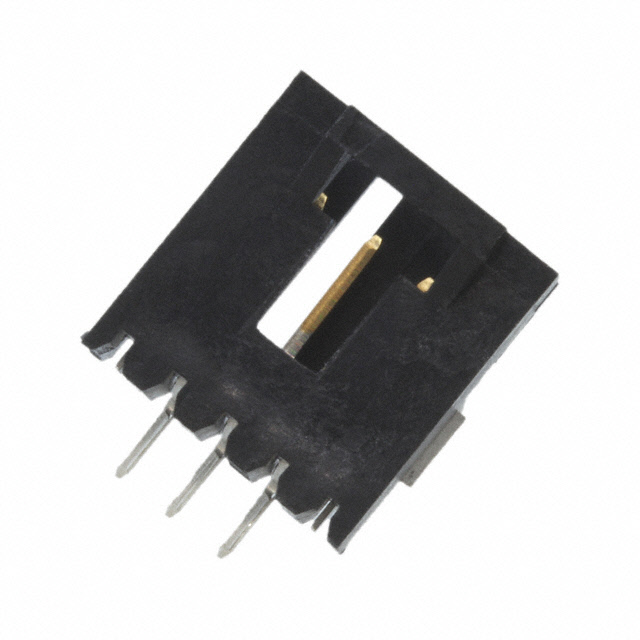

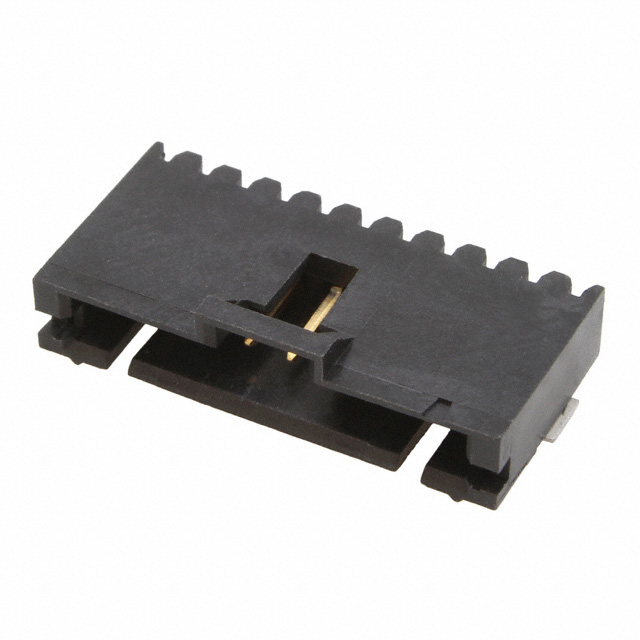

147323 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER SMD R/A 3POS 2.54MM

Part	Number of Rows	Fastening Type	Applications	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Mating	Contact Type	Style	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Features	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Shrouding	Insulation Color	Termination	Contact Material	Connector Type	Contact Shape	Current Rating (Amps)	Number of Positions

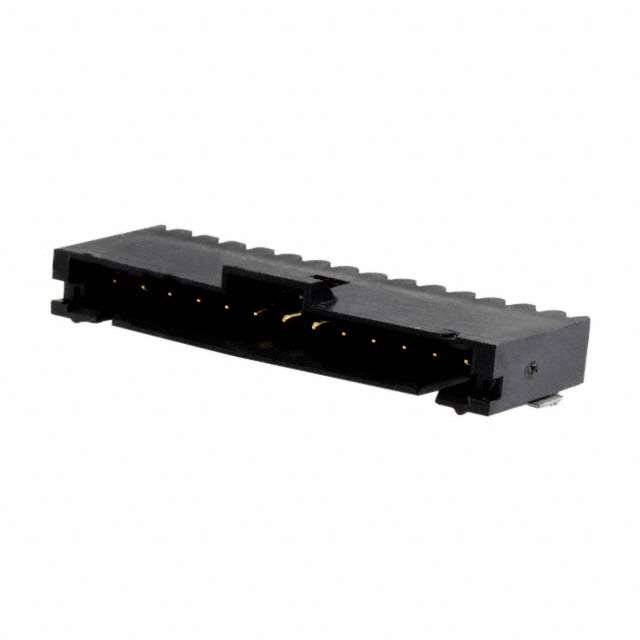

TE Connectivity Raychem Cable Protection 147323-2	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin-Lead	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A
TE Connectivity Raychem Cable Protection 1-147323-6	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin-Lead	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A
TE Connectivity Raychem Cable Protection 6-147323-0	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A	11
TE Connectivity Raychem Cable Protection 6-147323-6	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A
TE Connectivity Raychem Cable Protection 6-147323-7	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A	18

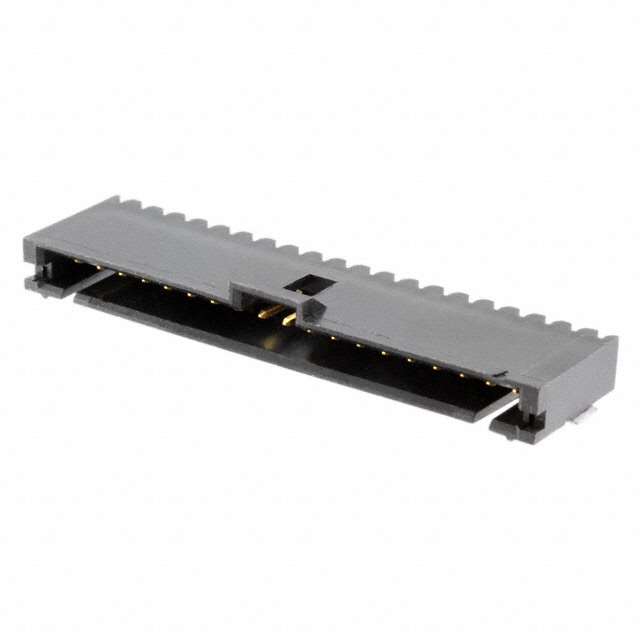

TE Connectivity Raychem Cable Protection 147323-8	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin-Lead	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A	9
TE Connectivity Raychem Cable Protection 147323-7	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin-Lead	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A	8

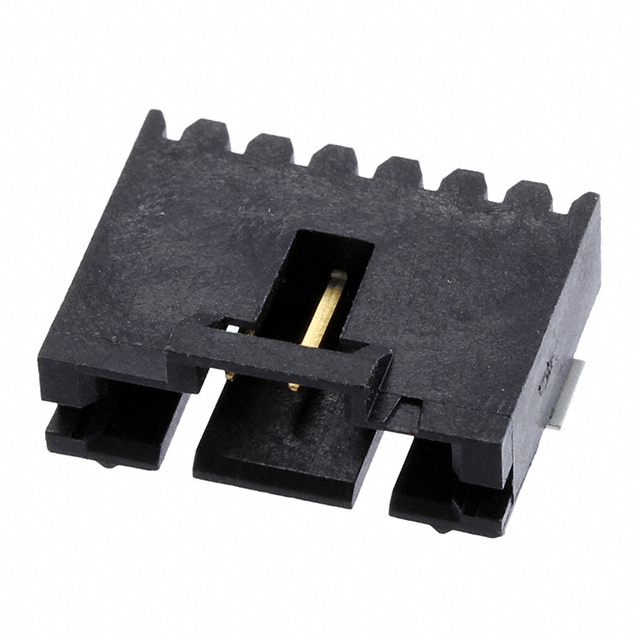

TE Connectivity Raychem Cable Protection 5-147323-4	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A
TE Connectivity Raychem Cable Protection 7-147323-0	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A	21
TE Connectivity Raychem Cable Protection 6-147323-8	1	Latch Holder	Automotive General Purpose Medical Telecommunications	UL94 V-0	0.23 in	5.84 mm	Gold	Male Pin	Board to Board Cable	Thermoplastic	-65 ░C	105 ░C	30 Áin	0.76 Ám	2.54 µm	100 µin	Surface Mount Right Angle	Board Lock Keying Slot Solder Retention	Tin	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Black	Solder	Brass	Header	Square	3 A	19
