D89120 Series

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Part	Row Spacing	Row Spacing	Wire Type	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Type	Number of Positions	Contact Finish	Features	Cable Termination	Mounting Type	Number of Rows [custom]	Length	Length	Length	Shielding	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Length [x]

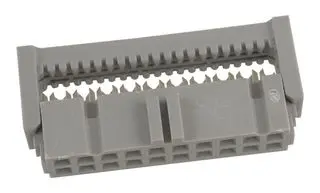

3M Electronic Specialty D89120-0131HK	2.54 mm	0.1 "	Ribbon Cable	Receptacle	Gray	0.38 µm	15 µin	0.1 "	2.54 mm	Female Socket	20	Gold	Feed Through Polarizing Key	IDC	Free Hanging (In-Line)	2
3M Electronic Specialty D89120-0101HK-3365/20-D-6				Socket to Socket		0.38 µm	15 µin				20	Gold		IDC		2	152.4 mm	0.5 '	6 "	Unshielded	0.1 in	2.54 mm	0.05 in	1.27 mm
3M Electronic Specialty D89120-0101HK-3365/20-D-3				Socket to Socket		0.38 µm	15 µin				20	Gold		IDC		2				Unshielded	0.1 in	2.54 mm	0.05 in	1.27 mm	76.2 mm	3 in	0.25 ft
3M Electronic Specialty D89120-0031HK-3365/20-D-3				Socket to Socket		0.38 µm	15 µin				20	Gold		IDC		2				Unshielded	0.1 in	2.54 mm	0.05 in	1.27 mm	76.2 mm	3 in	0.25 ft
3M Electronic Specialty D89120-0031HK-3365/20-D-6				Socket to Socket		0.38 µm	15 µin				20	Gold		IDC		2	152.4 mm	0.5 '	6 "	Unshielded	0.1 in	2.54 mm	0.05 in	1.27 mm
3M Electronic Specialty D89120-0101HK-3365/20-S-3				Socket to Cable		0.38 µm	15 µin				20	Gold		IDC		2				Unshielded	0.1 in	2.54 mm	0.05 in	1.27 mm	76.2 mm	3 in	0.25 ft
3M Electronic Specialty D89120-0001HK	2.54 mm	0.1 "	Ribbon Cable	Receptacle	Gray	0.38 µm	15 µin	0.1 "	2.54 mm	Female Socket	20	Gold	Feed Through	IDC	Free Hanging (In-Line)	2
3M Electronic Specialty D89120-0131HK-3365/20-S-6				Socket to Cable		0.38 µm	15 µin				20	Gold		IDC		2	152.4 mm	0.5 '	6 "	Unshielded	0.1 in	2.54 mm	0.05 in	1.27 mm
3M Electronic Specialty D89120-0131HK-3365/20-S-3				Socket to Cable		0.38 µm	15 µin				20	Gold		IDC		2				Unshielded	0.1 in	2.54 mm	0.05 in	1.27 mm	76.2 mm	3 in	0.25 ft
3M Electronic Specialty D89120-0131HK-3365/20-D-6				Socket to Socket		0.38 µm	15 µin				20	Gold		IDC		2	152.4 mm	0.5 '	6 "	Unshielded	0.1 in	2.54 mm	0.05 in	1.27 mm
