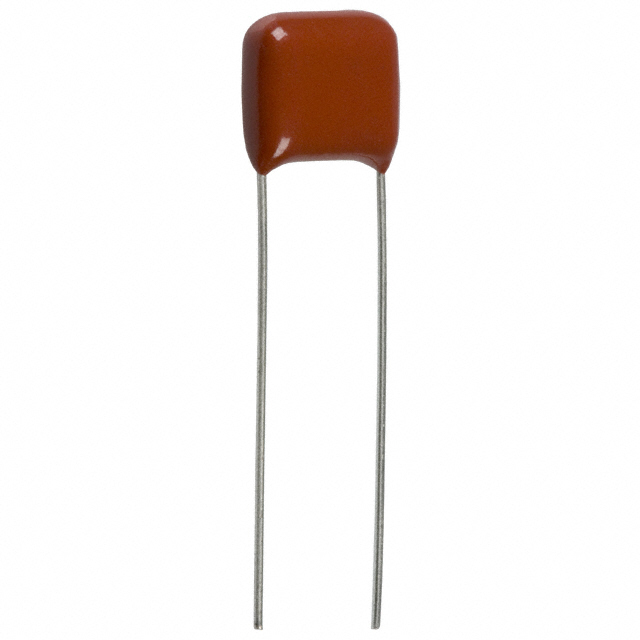

ECQ-V1334 Series

Catalog

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PET STACKED, RADIAL BOX - 2 PIN, 0.33 ΜF, ± 5%, 63 V

Part	Applications	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Lead Spacing	Lead Spacing	Termination	Capacitance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Panasonic Electronic Components ECQ-V1334JM	General Purpose	Radial	11 mm	0.433 in	100 V	0.295 in	7.5 mm	PC Pins	0.33 µF	Polyester Metallized - Stacked	-40 C	105 ░C	Through Hole	5 %	10.2 mm	0.189 in	4.8 mm	0.402 in
