PZC03 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 3POS 2.54MM

Part	Insulation Height	Insulation Height	Insulation Color	Current Rating (Amps)	Termination	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Shape	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Shrouding	Contact Length - Mating	Contact Length - Mating	Connector Type	Style	Number of Rows	Contact Material	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Overall Contact Length

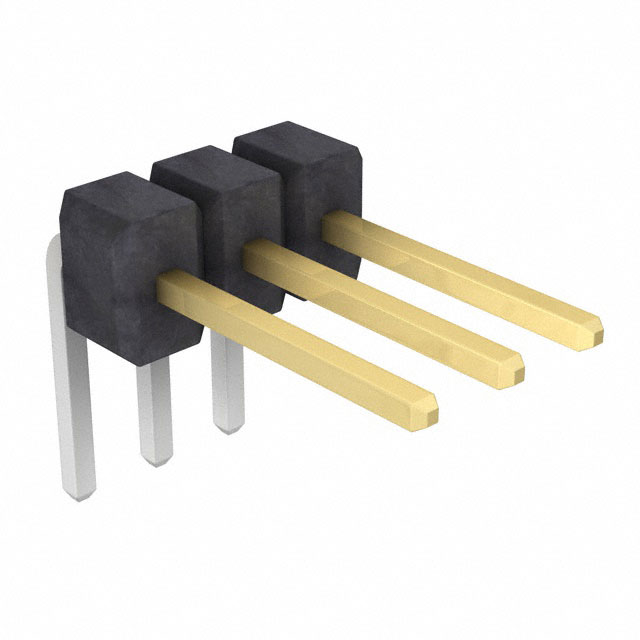

Sullins Connector Solutions PZC03SGBN	3.56 mm	0.14 in	Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Right Angle Through Hole	Square	5.58 mm	0.22 in	UL94 V-0	Unshrouded	8.08 mm	0.318 in	Header	Board to Board Cable	1	Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold
Sullins Connector Solutions PZC03SGAN	3.56 mm	0.14 in	Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Right Angle Through Hole	Square	3.05 mm	0.12 in	UL94 V-0	Unshrouded	8.08 mm	0.318 in	Header	Board to Board Cable	1	Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold

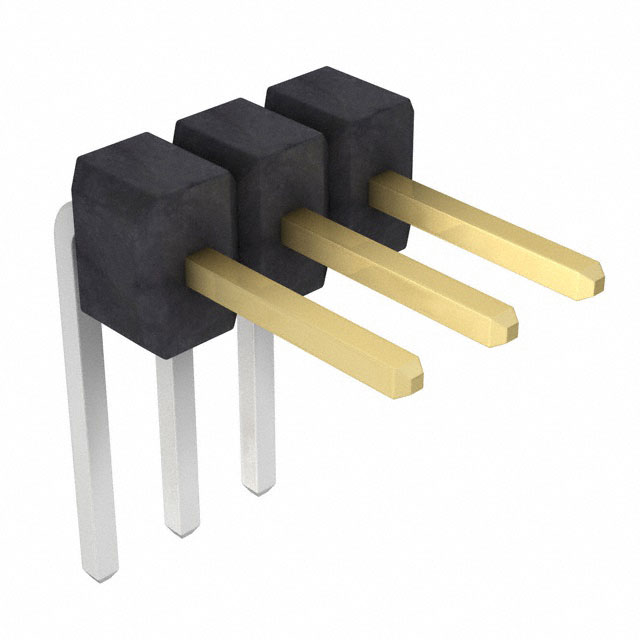

Sullins Connector Solutions PZC03SBCN	3.56 mm	0.14 in	Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Right Angle Through Hole	Square	8.13 mm	0.32 in	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Header	Board to Board Cable	1	Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold

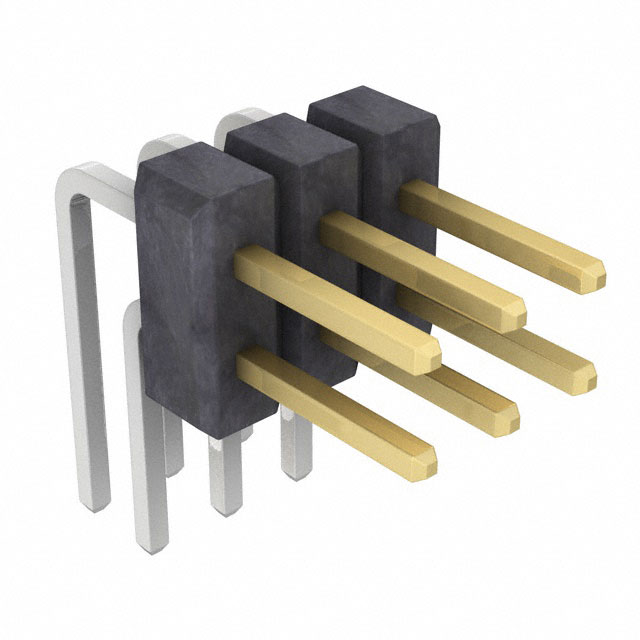

Sullins Connector Solutions PZC03DBBN			Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Right Angle Through Hole	Square	5.84 mm	0.23 "	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Header	Board to Board Cable		Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold	6	0.1 in	2.54 mm	2	6.1 mm	0.24 in

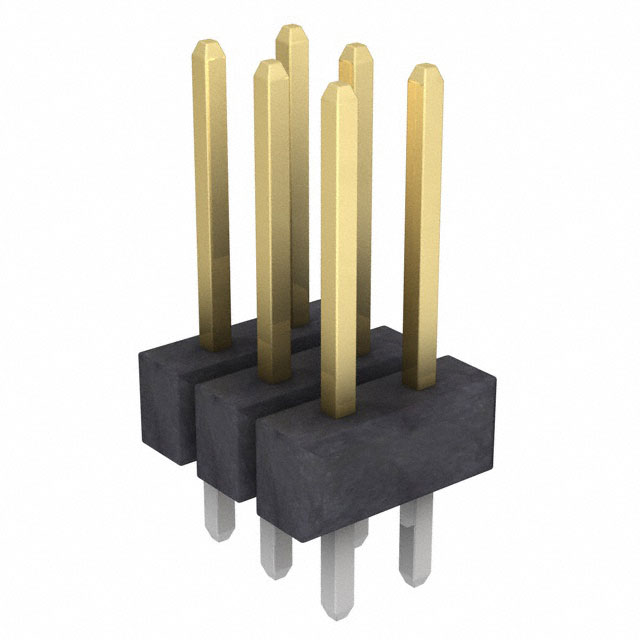

Sullins Connector Solutions PZC03DFAN	2.54 mm	0.1 in	Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Through Hole	Square	3.05 mm	0.12 in	UL94 V-0	Unshrouded	8.08 mm	0.318 in	Header	Board to Board Cable		Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold	6	0.1 in	2.54 mm	2			13.67 mm	0.538 in
Sullins Connector Solutions PZC03DFEN	2.54 mm	0.1 in	Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Through Hole	Square	13.21 mm	0.52 in	UL94 V-0	Unshrouded	8.08 mm	0.318 in	Header	Board to Board Cable		Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold	6	0.1 in	2.54 mm	2					23.83 mm	0.938 in

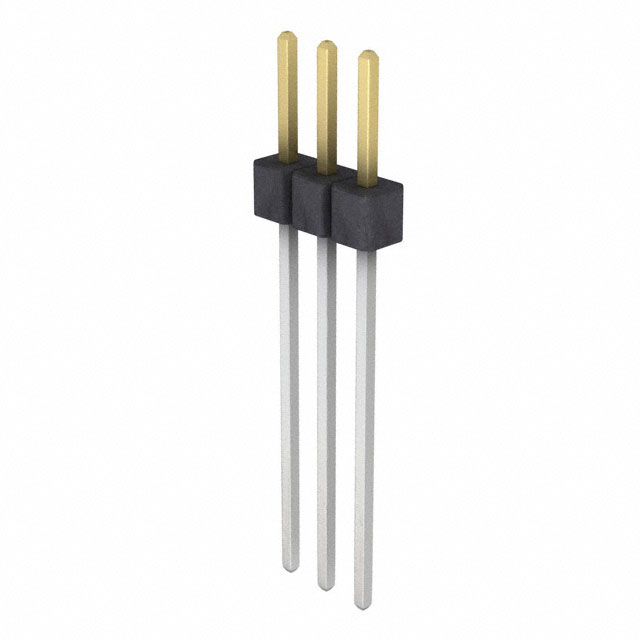

Sullins Connector Solutions PZC03SAGN	2.54 mm	0.1 in	Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Through Hole	Square	18.29 mm	0.72 "	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Header	Board to Board Cable	1	Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold									26.67 mm	1.05 in

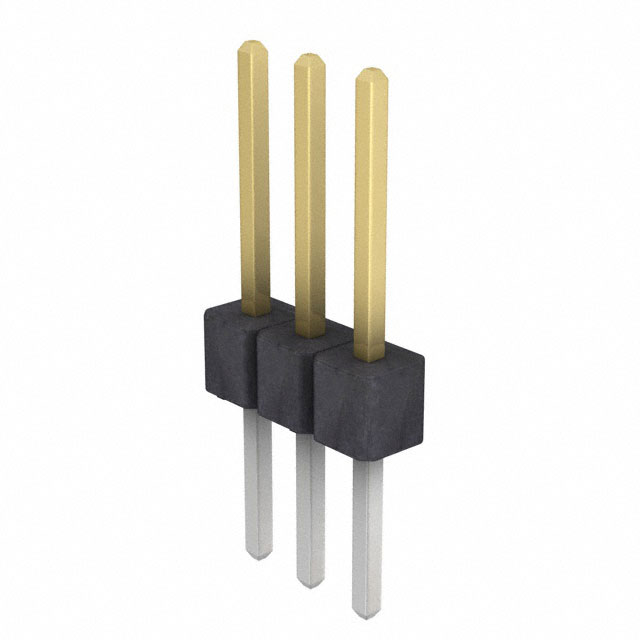

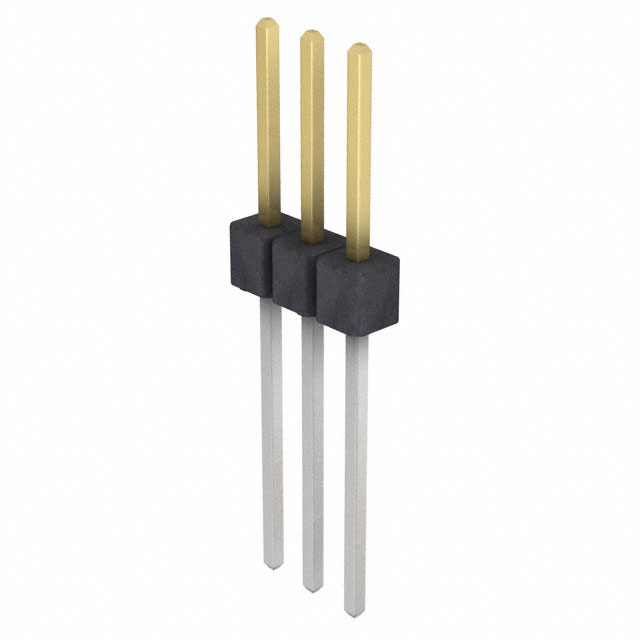

Sullins Connector Solutions PZC03SFBN	2.54 mm	0.1 in	Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Through Hole	Square	5.58 mm	0.22 in	UL94 V-0	Unshrouded	8.08 mm	0.318 in	Header	Board to Board Cable	1	Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold									16.21 mm	0.638 in

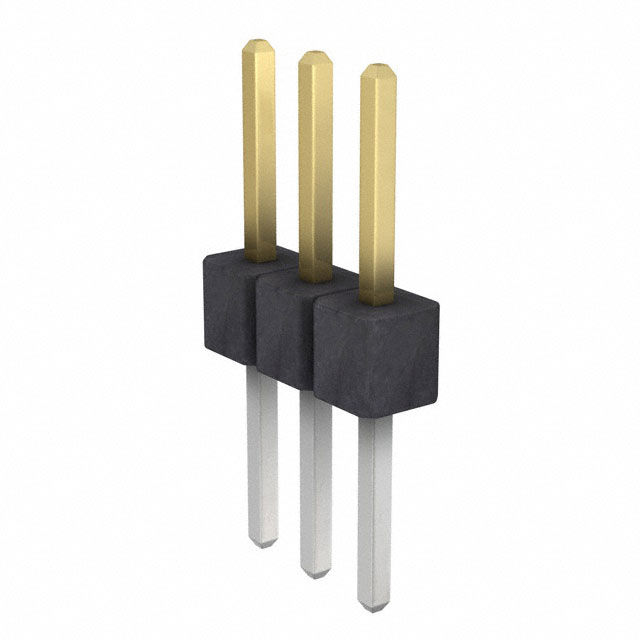

Sullins Connector Solutions PZC03SABN	2.54 mm	0.1 in	Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Through Hole	Square	5.84 mm	0.23 "	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Header	Board to Board Cable	1	Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold									14.22 mm	0.56 in

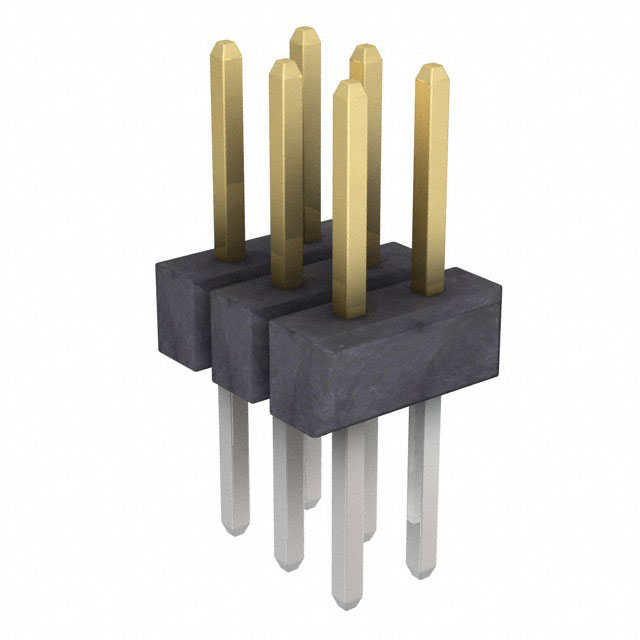

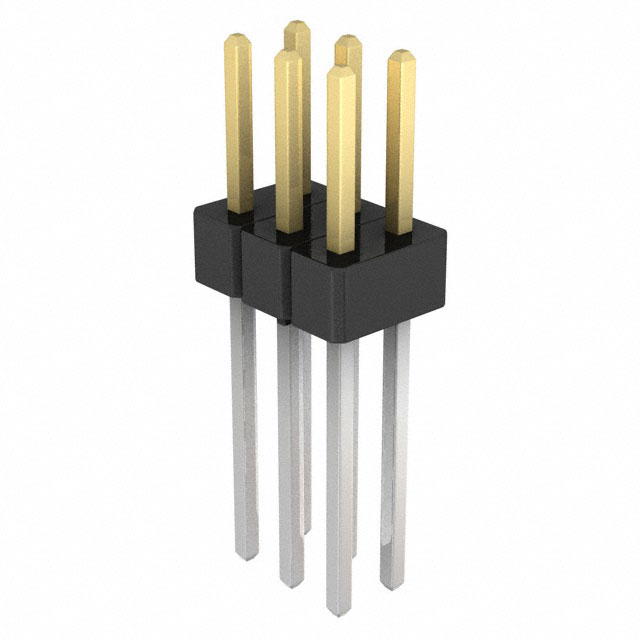

Sullins Connector Solutions PZC03DABN	2.54 mm	0.1 in	Black	3 A	Solder	Male Pin	0.25 µm	10 µin	Polyester Thermoplastic	Tin	2.54 µm	100 µin	Through Hole	Square	5.84 mm	0.23 "	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Header	Board to Board Cable		Copper Alloy	Push-Pull	All	0.1 "	2.54 mm	Gold	6	0.1 in	2.54 mm	2					14.22 mm	0.56 in
