R1254620 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

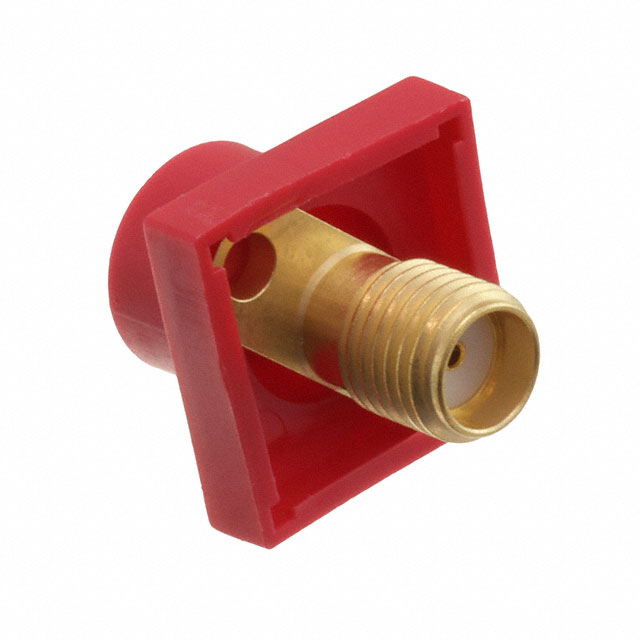

SMA F STR NWF SHO
| Part | Voltage Rating | Center Contact Plating | Body Material | Dielectric Material | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Impedance | Features | Contact Termination | Shield Termination | Mounting Feature | Housing Color | Connector Type | Frequency - Max [Max] | Connector Style | Number of Ports | Center Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Threaded | 50 Ohms | Extended Insulation | Solder | Solder | Flange | Gold | Female Socket Jack | 18 GHz | SMA | 1 | Beryllium Copper | Panel Mount |
