000-10 Series
Manufacturer: McGill Microwave Systems
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

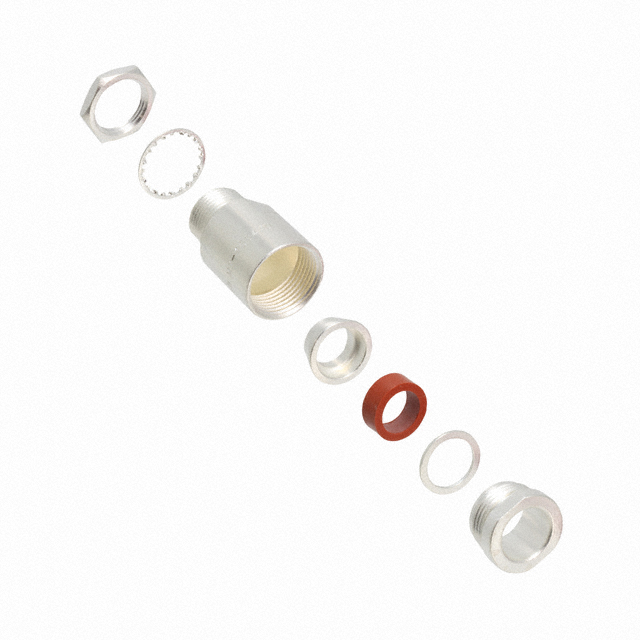

CONN MHV RCPT STR SOLDER
| Part | Mounting Type | Impedance | Features | Housing Color | Contact Termination | Connector Type | Number of Ports | Connector Style | Center Contact Material | Mounting Feature | Shield Termination | Fastening Type | Ingress Protection Description | Ingress Protection IP Rating | Body Finish | Body Material | Center Contact Plating | Voltage Rating | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Includes Total Count | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Panel Mount | Non-Constant | Extended Insulation | Silver | Solder Eyelet | Female Socket Recepture | 1 | MHV | Beryllium Copper | Bulkhead Front Side Nut | Solder | Bayonet Lock | Dust Tight Waterproof | IP67 | Nickel | Brass | Silver | 5000 V | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | 3 pcs | Connector Lockwasher Nut |
 McGill Microwave Systems | Bulkhead - Front Side Nut Panel Mount | SMA | Silver | Brass |
