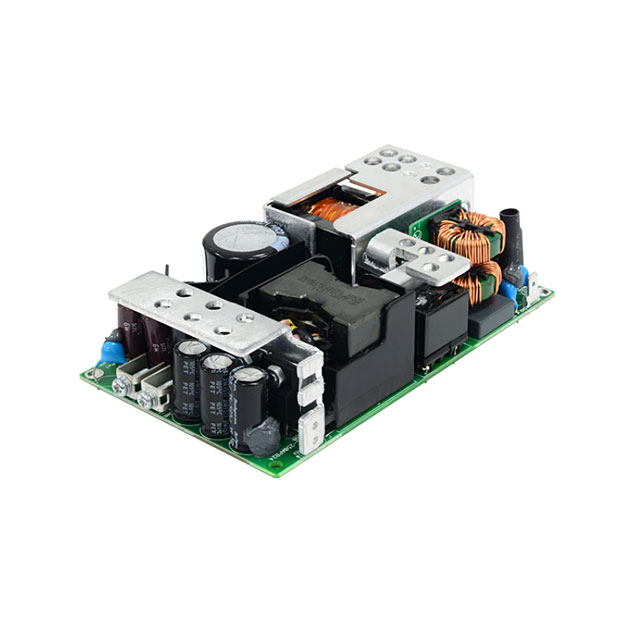

MDS-250 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC CONVERTER 24V 150W
| Part | Power (Watts) | Power (Watts) | Type | Approval Agency | Features | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Mounting Type | Standard Number | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation | Number of Outputs | Efficiency | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 150 W | 250 W | Enclosed | CB Scheme CE EN SIQ TUV UL | PFC Remote On/Off Remote Sense Standby Output Universal Input | 5.62 A | 70 °C | -10 °C | ITE (Commercial) Medical | Chassis Mount | 50581 55011 55032 60601-1 60950-1 62368-1 | 264 VAC | 90 VAC | 4000 V | 1 | 93 % | 24 V | 89 mm | 45 mm | 5.51 in | 3.5 " | 1.77 in | 140 mm |
