R14158 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

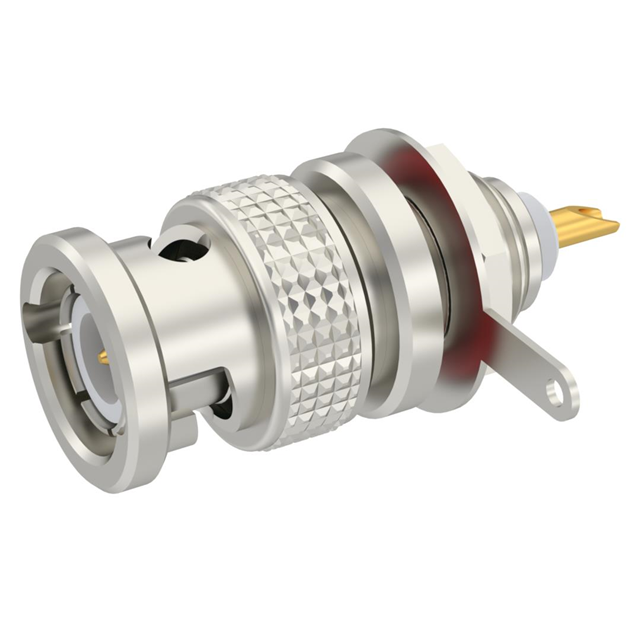

BNC / BULKHEAD PLUG RECEPTACLE P
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Body Material | Voltage Rating | Dielectric Material | Center Contact Plating | Frequency - Max [Max] | Connector Style | Number of Ports | Center Contact Material | Mounting Type | Features | Mounting Feature | Impedance | Contact Termination | Housing Color | Connector Type | Shield Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Nickel | Brass | 500 V | Polytetrafluoroethylene (PTFE) | Gold | 4 GHz | BNC | 1 | Brass | Panel Mount | Extended Insulation | Bulkhead - Rear Side Nut | 50 Ohms | Solder Cup | Silver | Plug Male Pin | Solder | Bayonet Lock |
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Nickel | Brass | 500 V | Polytetrafluoroethylene (PTFE) | Gold | 4 GHz | BNC | 1 | Brass | Panel Mount | Extended Insulation | Bulkhead - Rear Side Nut | 50 Ohms | Solder Cup | Silver | Plug Male Pin | Solder | Bayonet Lock |
