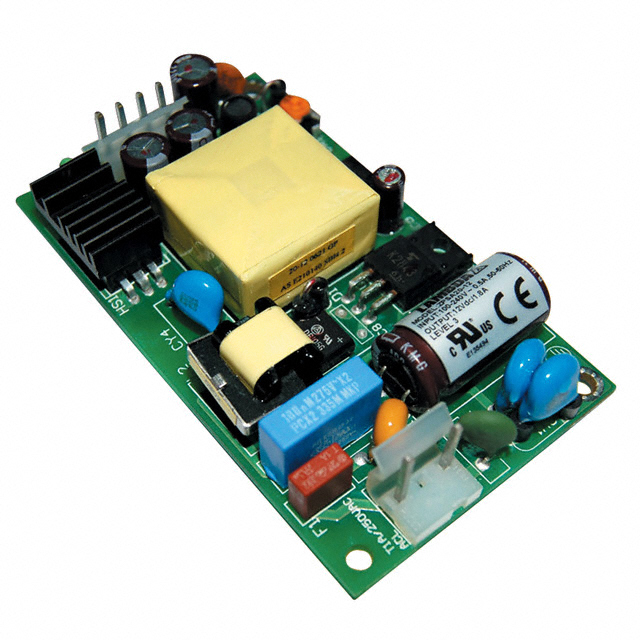

ZPSA20 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC CONVERTER 12V 20W
| Part | Minimum Load Required | Features | Current - Output 1 | Applications | Power (Watts) | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 1 | Approval Agency | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | DC Input Capable Universal Input | 1.8 A | ITE (Commercial) | 20 W | Chassis Mount | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | 0 °C | Open Frame | 3000 V | 2 in | 50.8 mm | 20 mm | 88.9 mm | 3.5 " | 0.79 in | 12 V | CE | 1 | |
TDK Corporation | DC Input Capable Universal Input | 2 A | ITE (Commercial) | 20 W | Chassis Mount | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | 0 °C | Open Frame | 3000 V | 2 in | 50.8 mm | 20 mm | 88.9 mm | 3.5 " | 0.79 in | 12 V | CE | 1 | |
TDK Corporation | DC Input Capable Universal Input | 1.4 A | ITE (Commercial) | 20 W | Chassis Mount | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | 0 °C | Open Frame | 3000 V | 2 in | 50.8 mm | 20 mm | 88.9 mm | 3.5 " | 0.79 in | 15 V | CE | 1 | |
 TDK Corporation | DC Input Capable Universal Input | 920 mA | ITE (Commercial) | 20 W | Chassis Mount | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | 0 °C | Open Frame | 3000 V | 2 in | 50.8 mm | 20 mm | 88.9 mm | 3.5 " | 0.79 in | 24 V | CE | 1 |
